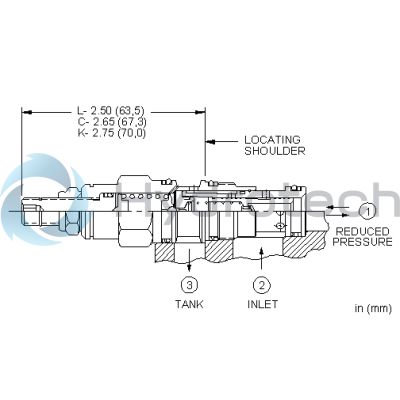

The Sun Hydraulics PPDBOHV (PPDBOHV) is a pilot-operated, pressure reducing-relieving valve designed to reduce high primary pressure at the inlet port 2 to a constant reduced pressure at port 1, while also providing a full-flow relief function from port 1 to tank port 3. This three-port valve is physically interchangeable with other pressure reducing and relieving cartridges of the same frame size, offering flexibility in mounting configurations. It is recommended to use a full capacity return line for port 3 when using these cartridges. The valve features exceptionally flat pressure-flow characteristics, stability, and low hysteresis. It has a maximum operating pressure of 5000 psi (350 bar) and supports control pilot flow rates between 7-10 in\u00b3/min (0.11-0.16 L/min). The adjustment range varies depending on the model with maximum differentials of 2000 psi for ranges D, E, N, and Q; 3000 psi for ranges A, B, and H; and 5000 psi for ranges C and W. The PPDBOHV incorporates Sun's floating style construction to minimize internal part binding due to excessive installation torque or machining variations. It's important to note that this valve type is not fast-acting; direct-acting valves should be considered for applications requiring superior dynamic response. Additionally, it can be configured with EPDM seals for use with phosphate ester fluids but should not be exposed to petroleum-based fluids as they may damage the seals. For installations requiring reverse free flow from reduced pressure port 1 to inlet port 2, adding a separate check valve is advised due to the main spool's potential closure in reverse flow conditions.

Pilot-operated, pressure reducing/relieving valves reduce a high primary pressure at the inlet (port 2) to a constant reduced pressure at port 1, with a full-flow relief function from port 1 to tank (port 3).

  • All three-port pressure reducing and reducing/relieving cartridges are physically interchangeable (i.e. same flow path, same cavity for a given frame size). When considering mounting configurations, it is sometimes recommended that a full capacity return line (port 3) be used with reducing/relieving cartridges.
  • Full reverse flow from reduced pressure (port 1) to inlet (port 2) may cause the main spool to close. If reverse free flow is required in the circuit, consider adding a separate check valve to the circuit.
  • If pilot flow consumption is critical, consider using direct acting reducing/relieving valves.
  • Recommended maximum inlet pressure is determined by the adjustment range. Ranges D, E, N, and Q are tested with a 2000 psi (140 bar) maximum differential between inlet and reduced pressure. Ranges A, B, and H are tested with a 3000 psi (210 bar) maximum differential between inlet and reduced pressure. Ranges C and W are tested with 5000 psi (350 bar) of inlet pressure.
  • Pilot operated valves exhibit exceptionally flat pressure/flow characteristics, are very stable and have low hysteresis.
  • Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
  • Pilot operated reducing, reducing/relieving valves by nature are not fast acting valves. For superior dynamic response, consider direct acting valves.
  • W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
  • Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
  • Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

CavityT-11A
Series1
Capacity10 gpm40 L/min.
Factory Pressure Settings Established atblocked control port (dead headed)blocked control port (dead headed)
Maximum Operating Pressure5000 psi350 bar
Control Pilot Flow7 - 10 in³/min.0,11 - 0,16 L/min.
Adjustment - Number of Clockwise Turns to Increase Setting55
Valve Hex Size7/8 in.22,2 mm
Valve Installation Torque30 - 35 lbf ft41 - 47 Nm
Adjustment Screw Internal Hex Size5/32 in.4 mm
Locknut Hex Size9/16 in.15 mm
Locknut Torque80 - 90 lbf in.9 - 10 Nm
Model Weight.30 lb0,15 kg
Seal kit - CartridgeViton: 990-011-006
