The Sun Hydraulics PPDBKPN (Material Number: PPDBKPN) is a pilot-operated, pressure reducing/relieving valve designed to maintain a constant reduced pressure at port 1 by reducing a higher primary pressure from inlet port 2, while also providing a full-flow relief function to tank port 3. This three-port cartridge is interchangeable with other reducing and relieving cartridges of the same cavity and frame size, making it versatile for various configurations. It is recommended to utilize a full capacity return line at port 3 for optimal performance. The valve can handle maximum operating pressures up to 5000 psi (350 bar), with specific ranges tested under different conditions: ranges D, E, N, and Q with a 2000 psi differential; A, B, and H with 3000 psi; and C and W with an inlet pressure of up to 5000 psi. The PPDBKPN model exhibits low hysteresis and stable pressure-flow characteristics due to its pilot-operated design but may not be as fast-acting as direct-acting valves. It features Sun's floating style construction to reduce the risk of internal binding during installation. The valve setting can be adjusted using the W or Y controls within its full range unless specified otherwise. For systems using phosphate ester fluids, EPDM seals are available but should not be exposed to petroleum-based substances. Key specifications include a capacity of 10 gpm (40 L/min), control pilot flow between 7-10 in\u00b3/min (0.11-0.16 L/min), and an adjustment requiring approximately five clockwise turns to increase the setting. The valve's installation torque is between 30-35 lbf ft (41-47 Nm). For applications requiring reverse flow from reduced pressure port 1 back to inlet port 2, it is advised to incorporate a separate check valve in the circuit if free flow is necessary.

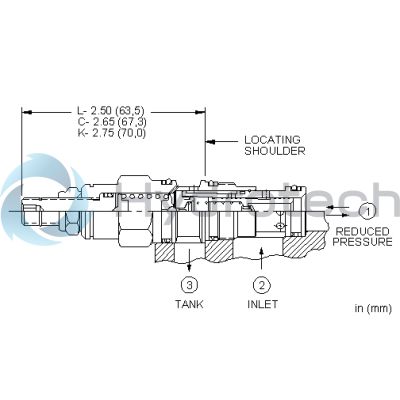

Pilot-operated, pressure reducing/relieving valves reduce a high primary pressure at the inlet (port 2) to a constant reduced pressure at port 1, with a full-flow relief function from port 1 to tank (port 3).

  • All three-port pressure reducing and reducing/relieving cartridges are physically interchangeable (i.e. same flow path, same cavity for a given frame size). When considering mounting configurations, it is sometimes recommended that a full capacity return line (port 3) be used with reducing/relieving cartridges.
  • Full reverse flow from reduced pressure (port 1) to inlet (port 2) may cause the main spool to close. If reverse free flow is required in the circuit, consider adding a separate check valve to the circuit.
  • If pilot flow consumption is critical, consider using direct acting reducing/relieving valves.
  • Recommended maximum inlet pressure is determined by the adjustment range. Ranges D, E, N, and Q are tested with a 2000 psi (140 bar) maximum differential between inlet and reduced pressure. Ranges A, B, and H are tested with a 3000 psi (210 bar) maximum differential between inlet and reduced pressure. Ranges C and W are tested with 5000 psi (350 bar) of inlet pressure.
  • Pilot operated valves exhibit exceptionally flat pressure/flow characteristics, are very stable and have low hysteresis.
  • Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
  • Pilot operated reducing, reducing/relieving valves by nature are not fast acting valves. For superior dynamic response, consider direct acting valves.
  • W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
  • Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
  • Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

CavityT-11A
Series1
Capacity10 gpm40 L/min.
Factory Pressure Settings Established atblocked control port (dead headed)blocked control port (dead headed)
Maximum Operating Pressure5000 psi350 bar
Control Pilot Flow7 - 10 in³/min.0,11 - 0,16 L/min.
Adjustment - Number of Clockwise Turns to Increase Setting55
Valve Hex Size7/8 in.22,2 mm
Valve Installation Torque30 - 35 lbf ft41 - 47 Nm
Adjustment Screw Internal Hex Size5/32 in.4 mm
Locknut Hex Size9/16 in.15 mm
Locknut Torque80 - 90 lbf in.9 - 10 Nm
Model Weight.30 lb0,15 kg
Seal kit - CartridgeViton: 990-011-006

Show FAQ

Additional Resources



Notes:
  • Maximum pressure differentials for spring ranges: A and B are 3000 psi (210 bar) N and Q are 2000 psi (140 bar) W is 5000 psi (350 bar)inlet pressure
  • For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.
