SUN HYDRAULICS
NEEDLE CARTRDGE
NCEBLCV
$69.50 USD
Tags:
- SUN HYDRAULICS
- Material:NCEBLCV
- Model:NCEB-LCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics NCEBLCV (Material Number: NCEBLCV) is a needle valve with reverse flow check, designed to regulate flow with precision. This valve is fully adjustable from a closed position to the maximum orifice diameter, allowing for precise control of fluid flow. It includes an integral high-capacity check valve that enables unrestricted flow from port 2 to port 1, although it is not pressure compensated. The design ensures interchangeability among all 2-port flow control cartridges, maintaining the same flow path and cavity compatibility for a given frame size, even though cartridge extension dimensions might differ. The non-compensating nature of the needle valve means that the orifice size regulates flow proportionally to the square root of the pressure differential across ports 1 and 2. A balanced adjustment mechanism facilitates easy adjustments even under high-pressure conditions, while the sharp-edged orifice minimizes flow variations due to viscosity changes. The Sun Hydraulics NCEBLCV features a floating style construction that reduces the risk of internal parts binding due to excessive installation torque or machining variations in cavity-cartridge configurations. It supports a capacity of 12 gpm (45 L/min) and operates at a maximum pressure of 5000 psi (350 bar). The valve has specific installation requirements including a hex size of 1-1/8 inches and an installation torque range between 45-50 lbf ft (61-68 Nm). Its adjustment screw requires a 5/32 inch internal hex size, while the locknut has a hex size of 9/16 inches with a torque range of 80-90 lbf in (9-10 Nm). The model weighs approximately .40 lb (.20 kg) and uses Viton seals for effective performance in various applications.
The Sun Hydraulics NCEBLCV (Material Number: NCEBLCV) is a needle valve with reverse flow check, designed to regulate flow with precision. This valve is fully adjustable from a closed position to the maximum orifice diameter, allowing for precise control of fluid flow. It includes an integral high-capacity check valve that enables unrestricted flow from port 2 to port 1, although it is not pressure compensated. The design ensures interchangeability among all 2-port flow control cartridges, maintaining the same flow path and cavity compatibility for a given frame size, even though cartridge extension dimensions might differ. The non-compensating nature of the needle valve means that the orifice size regulates flow proportionally to the square root of the pressure differential across ports 1 and 2. A balanced adjustment mechanism facilitates easy adjustments even under high-pressure conditions, while the sharp-edged orifice minimizes flow variations due to viscosity changes. The Sun Hydraulics NCEBLCV features a floating style construction that reduces the risk of internal parts binding due to excessive installation torque or machining variations in cavity-cartridge configurations. It supports a capacity of 12 gpm (45 L/min) and operates at a maximum pressure of 5000 psi (350 bar). The valve has specific installation requirements including a hex size of 1-1/8 inches and an installation torque range between 45-50 lbf ft (61-68 Nm). Its adjustment screw requires a 5/32 inch internal hex size, while the locknut has a hex size of 9/16 inches with a torque range of 80-90 lbf in (9-10 Nm). The model weighs approximately .40 lb (.20 kg) and uses Viton seals for effective performance in various applications.

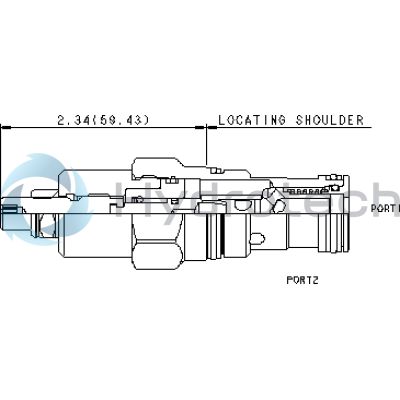

Needle valves with reverse-flow check are fully adjustable orifices used to regulate flow. They are infinitely adjustable from fully closed up to the maximum orifice diameter. An integral high-capacity check valve provides unrestricted flow from port 2 to port 1. They are not pressure compensated.
- All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
- Because needle valves are non-compensating devices, the fixed orifice size will regulate flow through the valve in proportion to the square root of the pressure differential across ports 1 and 2.
- A balanced adjustment mechanism allows for easy adjustment even at high pressures.
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-5A |
| Series | 2 |
| Capacity | 12 gpm (.25 inch)45 L/min. (6,4 mm) |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 drops/min.0,7 cc/min. |
| Adjustment - Number of Counterclockwise Turns - Fully Closed to Fully Open | 55 |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-203-006 |
Show FAQ
Additional Resources
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Sun Expands Corrosion-Resistant Solutions
- Series 4 PLUS Cartridges Offer Higher Flows with Lower Pressure Losses
- Sun Offers Zinc-Nickel Plating for Corrosion Resistance
- Sun Cartridges with EPDM Seals
- Manufacturing Sun Cartridge Cavities
- Check, Flow Control, and Priority Flow Control Valves
- Fluid and Temperature Recommendations
- Sun's Floating Style Screw-In Cartridge
- Performance Data
- Sun Model Code Explanation; 999-901-334
- Units of Measure, Settings, and Conversions
- Cartridges: Materials of Construction
- Cavity Information (S-171) and Tooling
Notes:
- For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.
