SUN HYDRAULICS
LINE MOUNT BODY
IAM

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

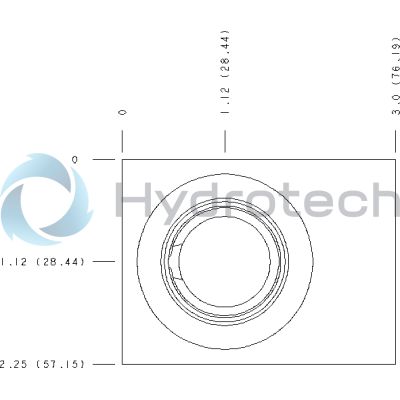

The Sun Hydraulics IAM (Material Number: IAM) is a line mount manifold designed for hydraulic systems requiring high flow capacities. Featuring a ninety-degree body with an integrated gauge port, this manifold is engineered to facilitate efficient fluid management in complex hydraulic circuits. It has a mounting hole diameter of 0.41 inches (10.4 mm) and supports through-hole mounting, providing flexibility for various installation configurations. The manifold accommodates one open cavity and utilizes the T16A cavity type, which is compatible with numerous hydraulic cartridge valves. This model is constructed from 6061T651 aluminum, known for its excellent corrosion resistance and strength-to-weight ratio, making it suitable for demanding applications where durability and lightweight construction are essential. The IAM manifold includes SAE 16 port sizes, ensuring compatibility with standard hydraulic fittings and hoses. When considering the use of this manifold, it's crucial to account for the maximum system pressure limitations inherent to aluminum manifolds; they are not rated for pressures exceeding 3000 psi (210 bar). This limitation should be carefully evaluated against the application's pressure requirements to ensure safe and reliable operation. The Sun Hydraulics IAM model offers robust performance in managing high-flow hydraulic systems while maintaining ease of integration within existing setups due to its versatile design features.
