SUN HYDRAULICS
HPY

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

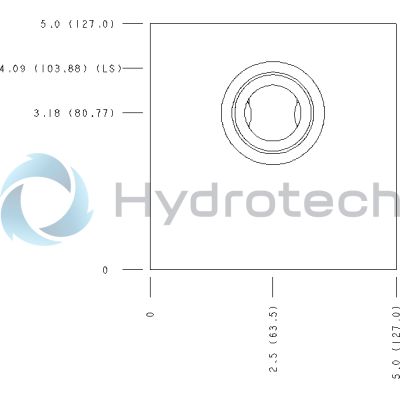

The Sun Hydraulics HPY (Material Number: HPY) is a robust line mount manifold designed for hydraulic systems requiring a cushion lock with make-up checks. This component features a body type suitable for line mounting with no specific interface required, making it versatile for various applications. It has a mounting hole diameter of 0.53 inches (13.5 mm) and accommodates through-hole mounting with two open cavities, providing flexibility in installation. The manifold is compatible with T-17A cavities and includes ports sized at 1 1/4 BSPP, facilitating easy integration into existing systems. Constructed from 6061-T651 aluminum, the HPY manifold is known for its corrosion resistance and durability in demanding environments. Despite not being anodized, the material choice ensures longevity without compromising structural integrity under pressure conditions up to 3000 psi (210 bar). The design considerations emphasize maintaining fatigue life while ensuring ease of use and consistency in hydraulic operations. This manifold is particularly effective in applications where pressure management and system reliability are critical. Its cushion lock feature helps control fluid flow dynamics, reducing shock loads and enhancing the overall performance of hydraulic circuits. With its straightforward design and compatibility features, the Sun Hydraulics HPY manifold serves as an essential component for optimizing hydraulic system functionality across various settings.
