SUN HYDRAULICS
HGE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

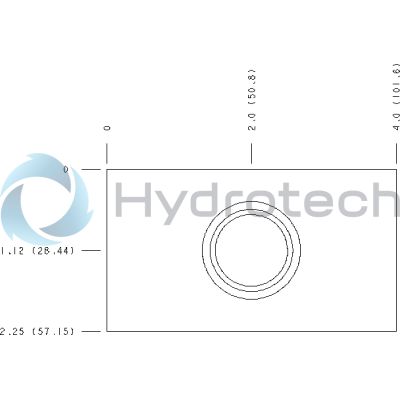

The Sun Hydraulics HGE (HGE) is a robust line mount manifold designed for versatile hydraulic applications. This model features a ninety-degree configuration with an integrated shuttle, making it suitable for complex fluid routing tasks. The manifold is crafted from 6061-T651 aluminum, known for its excellent corrosion resistance and strength-to-weight ratio, making it ideal for demanding environments. It includes two mounting holes with a diameter of .42 inches and a depth that goes through the manifold body, allowing for secure installation. The HGE model supports one NPTF port size, facilitating easy integration into existing hydraulic systems. This component is engineered to accommodate open cavities with a T-17A cavity specification, ensuring compatibility with various cartridge valves. While the manifold is not anodized, its construction material provides inherent durability and longevity in corrosive conditions. It is important to note that the maximum system pressure should be carefully considered, as aluminum manifolds are not rated for pressures exceeding 3000 psi (210 bar).
