SUN HYDRAULICS
HDX

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

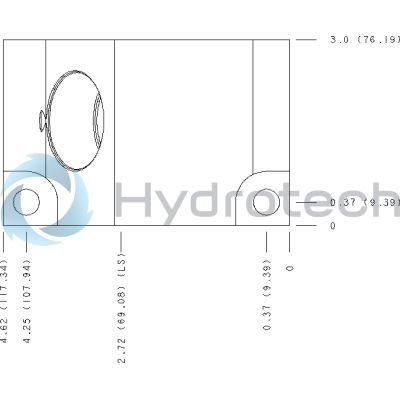

The Sun Hydraulics HDX (Material Number: HDX) is a high-quality inline body type hydraulic manifold designed for versatile applications. This line mount manifold features an interface with no specific designations, making it adaptable to various systems. It is constructed with two mounting holes, each with a diameter of 0.42 inches (10.7 mm), and the holes are through-type, ensuring secure installation. The manifold includes one open cavity and utilizes T17A cavity specifications, which cater to specific hydraulic needs. Port size for this model is 1 BSPP, suitable for standard hydraulic connections. The HDX manifold is crafted from 6061T651 aluminum, known for its excellent corrosion resistance and strength-to-weight ratio, making it ideal for environments where these properties are crucial. This material choice ensures durability without the need for anodizing, which can reduce fatigue life by up to 50% due to the brittle surface it creates on aluminum. When using this manifold in any system, it is critical to consider the maximum system pressure as aluminum manifolds are not rated for pressures exceeding 3000 psi (210 bar). This limitation should be taken into account during system design and selection to ensure safety and reliability. The Sun Hydraulics HDX model is particularly suited for applications requiring a reliable manifold that can withstand moderate pressures while offering flexibility in mounting and connection configurations. Its robust construction and thoughtful design make it a dependable choice in hydraulic systems where weight and corrosion resistance are significant considerations.
