SUN HYDRAULICS
HDDATCV72419

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

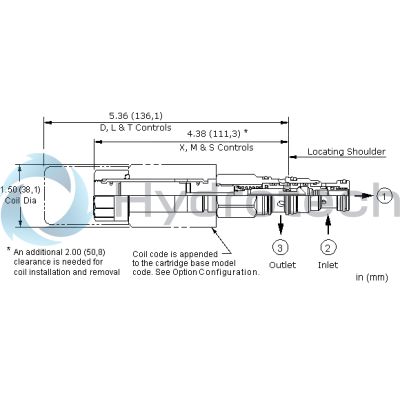

The Sun Hydraulics HDDATCV72419 (Material Number: HDDATCV72419) is a sophisticated solenoid-after check cartridge valve designed for precise control in hydraulic systems. This hybrid valve combines a direct acting solenoid poppet valve with a check function, facilitating flow from the inlet port 2 to the system port 1, while blocking flow from port 2 to port 3 when the solenoid is de-energized. Primarily utilized in lift-lower applications, it can be directly integrated into actuators, making it ideal for load holding scenarios. The solenoid tube assembly is engineered for durability, with a fatigue rating suitable for up to 5000 psi (350 bar) service. Equipped with various manual override options, this cartridge offers flexibility in operation; however, manual overrides are not compatible with weatherized coils. The wet armature design allows working fluid to surround the armature, which can be advantageous but may require attention if used with fluids like water-glycol mixtures that degrade under heat over time. The interchangeable coils are compatible with other Sun Series 1 products and can be mounted in either direction, offering connector options rated up to IP69K for enhanced environmental protection. The Sun Hydraulics HDDATCV72419 features floating style construction to minimize internal part binding due to installation torque or machining variations. It supports a maximum flow capacity of 10 gpm (40 L/min) and operates efficiently at pressures up to 5000 psi (350 bar). With a typical response time of 50 ms and low leakage rates at high viscosity conditions, this valve ensures reliable performance across various demanding applications. Its robust design and versatile capabilities make it an essential component for hydraulic systems requiring precise control and reliability.
