SUN HYDRAULICS
H8L

$680.40 USD

Tags:

SUN HYDRAULICS
Material:H8L
Summary:Manifold

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

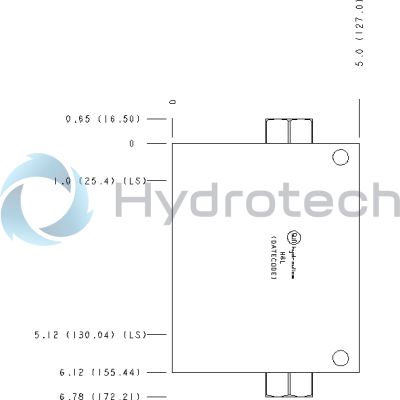

The Sun Hydraulics H8L (Material Number: H8L) is a line mount manifold designed for hydraulic systems requiring a 2-cylinder sequence with reverse checks. This manifold features two open cavities and is compatible with T-17A cavities. It is designed to accommodate SAE 12 port sizes, making it suitable for a variety of hydraulic applications. The mounting holes have a diameter of .42 inches (10.7 mm) and are through-holes, allowing for easy installation with two mounting holes provided. The manifold is crafted from 6061T651 aluminum, known for its excellent corrosion resistance and strength, ensuring durability in demanding environments. However, it is important to note that this material limits the pressure rating to a maximum of 3000 psi (210 bar). This product does not include anodizing, which helps maintain its fatigue life by avoiding the brittle surface that anodizing can introduce. The Sun Hydraulics H8L manifold is ideal for systems where precise sequencing of cylinders is required, providing reliable performance in controlling hydraulic flow paths while maintaining system integrity under specified pressure conditions.

Description

Body Type	Line mountLine mount
Interface	NoneNone
Body Features	2 cylinder sequence, with reverse checks2 cylinder sequence, with reverse checks
Mounting Hole Diameter	.42 in.10,7 mm
Mounting Hole Depth	ThroughThrough
Mounting Hole Quantity	22
Open Cavities	22
Cavity	T-17A
Port Size	SAE 12SAE 12

Show FAQ

How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Why does Sun use 6061 aluminum?	6061-T651 is relatively strong, relatively inexpensive, difficult to machine, readily available in all shapes and sizes and very corrosion resistant. 2024 is stronger and machines beautifully, but is expensive and falls to pieces in a corrosive environment.
Why doesn't Sun anodize their aluminum bodies?	Reasons to anodize: To increase corrosion resistance. Sun uses 6061-T651 aluminum. It is one of the most corrosion resistant aluminum alloys there is. Whether or not anodizing improves the corrosion resistance of 6061 aluminum is debatable. We have yet to have a manifold returned because of corrosion. Appearance (color). The 2 colors that would appeal to Sun would be blue or black. Unfortunately these are the colors that are hardest to do consistently. To provide a hard wear surface. Sun does not make parts-in-body valves. The manifold is just plumbing. We don't need a wear surface. Because everyone else does it. Bad reason. Reasons to not anodize: Cost. It's another process. Logistics. When you make tens of thousands of manifolds a month and you anodize hundreds, it's a problem. Consistency. See above. Stamping. After a body is anodized you cannot do any more stamping without making a mess.Inspection. Have you ever tried to look for burrs in a black anodized body? It's the old blackboard factory at night scenario. Torque. You will experience an increase in breakaway torque when removing items from an anodized manifold. Fatigue life. This is the best reason to not anodize. Fatigue failure is a very complex phenomenon. What it takes to initiate a crack is difficult to predict. What it takes to propagate a crack is readily defined. Anodizing produces a very thin, very hard, and very brittle surface on aluminum. The first time you pressurize an anodized aluminum manifold you have initiated fatigue cracks. Whether or not the stress is enough to propagate the cracks is a matter of pressure and manifold geometry. Anodizing an aluminum manifold grossly reduces the fatigue life by anywhere from 20% to 50%.

Additional Resources

Notes:

Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
