SUN HYDRAULICS
H65

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

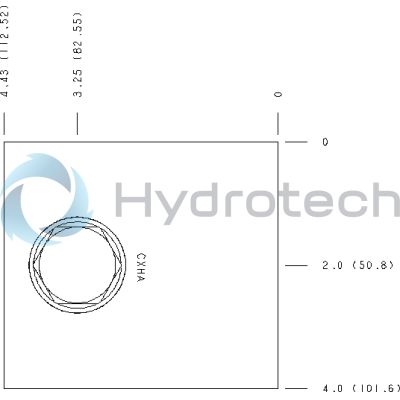

The Sun Hydraulics H65 (Material Number: H65) is a line mount hydraulic manifold specifically designed for high-performance applications requiring a ninety-degree configuration with reverse flow check sequence. This model features a robust construction with two M10x1.5 6H metric mounting holes, each with a depth of 15.7 mm, ensuring secure and stable installation. The manifold includes one open cavity, T-17A, and is compatible with port size specifications of 1 14 Code 62, making it versatile for various hydraulic systems. Manufactured from 6061 aluminum alloy, the manifold offers excellent corrosion resistance and durability without the need for anodizing, which can adversely affect fatigue life by introducing stress cracks under pressure. This choice of material ensures that the manifold can withstand operational pressures up to 3000 psi (210 bar), provided that the system design adheres to these limits. The Sun Hydraulics H65 is ideal for use in hydraulic systems where space constraints require compact yet efficient solutions without compromising on performance or reliability. It supports high flow valves and can be integrated into custom designs using tools like QuickDesign with SmartConnect for schematic planning. The H65's design facilitates easy connection within complex hydraulic circuits while maintaining integrity and performance under demanding conditions.
