SUN HYDRAULICS
H4W

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

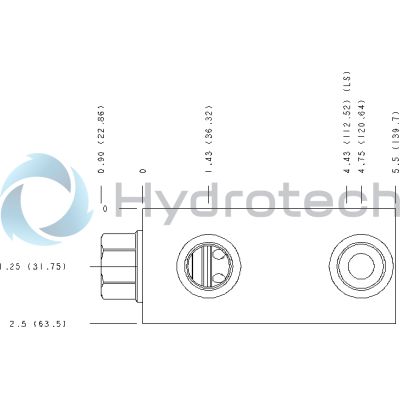

The Sun Hydraulics H4W (Material Number: H4W) is a line mount manifold designed for hydraulic systems requiring a 90-degree configuration with reverse flow check and reducing capabilities. Engineered for optimal performance, this manifold features a mounting hole diameter of 0.41 inches (10.4 mm) and a through-hole depth, accommodating two mounting holes for secure installation. It includes one open cavity designed to fit the T-17A cavity type. The port size is 3/4 BSPP, ensuring compatibility with various hydraulic fittings and components. Manufactured using 6061T651 aluminum, the manifold offers excellent corrosion resistance and structural integrity, making it suitable for demanding environments where durability is critical. However, it is important to note that this material limits the maximum system pressure to 3000 psi (210 bar), emphasizing the need to carefully consider system requirements before integration. The Sun Hydraulics H4W manifold provides an efficient solution for applications requiring precise flow control and pressure regulation in hydraulic circuits. Its design supports easy integration into existing systems while maintaining high performance standards.
