SUN HYDRAULICS
H3Y

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

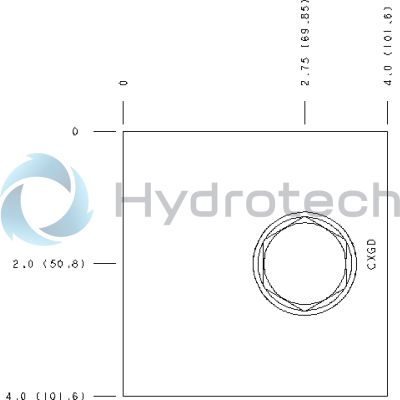

The Sun Hydraulics H3Y (Material Number: H3Y) is a high-performance line mount manifold designed for hydraulic systems. This manifold features a through port 2 with a reverse flow check, ensuring efficient fluid control and preventing backflow. It is equipped with M10x1.5 6H mounting hole threads, with a depth of 0.62 inches (15.7 mm) and two mounting holes to secure the unit in place. The manifold supports one open cavity and fits the T-17A cavity type, with a port size of 1-1/4 BSPP for optimal connectivity in hydraulic circuits. Constructed from 6061T651 aluminum, this manifold offers excellent corrosion resistance and durability, making it suitable for various environmental conditions without the need for anodizing. This material choice provides a balance between strength and cost-effectiveness while minimizing machining difficulties. Users should note that manifolds made from aluminum are not rated for pressures exceeding 3000 psi (210 bar), regardless of the port type or size. The Sun Hydraulics H3Y manifold is ideal for applications requiring robust flow management and reliable performance in hydraulic systems. It is particularly useful in setups where preventing reverse flow is critical to maintaining system integrity and efficiency. Additionally, this product supports high flow valves and can be integrated into custom packages using Sun's design tools such as QuickDesign with SmartConnect, ensuring flexible solutions tailored to specific system requirements.
