SUN HYDRAULICS
H3W

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

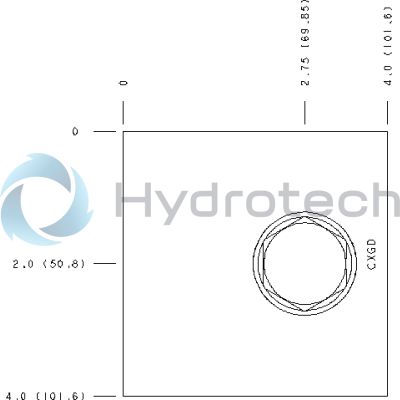

The Sun Hydraulics H3W (Material Number: H3W) is a line mount hydraulic manifold designed with through port 2 featuring a reverse flow check. This specific model is engineered for applications requiring efficient fluid control and management in hydraulic systems. The manifold is constructed from 6061T651 aluminum, known for its exceptional corrosion resistance and relatively high strength, making it suitable for demanding environments. It features an M10x1.5 6H mounting hole thread with a depth of 15.7 mm and comes equipped with two mounting holes to ensure secure installation. The manifold includes one open cavity (T-17A) and accommodates a port size of 3/4 BSPP, facilitating compatibility with various hydraulic components. This product is ideal for use in situations where reliable flow control and directional accuracy are critical, such as in industrial machinery or mobile equipment hydraulic systems. The reverse flow check feature ensures that fluid flows efficiently through the system while preventing backflow, which can be crucial for maintaining system integrity and performance. The design considerations include the maximum system pressure, as manifolds constructed from aluminum are not rated for pressures exceeding 3000 psi (210 bar). This constraint ensures safe operation within specified parameters, allowing users to integrate the manifold into their systems confidently. Overall, the Sun Hydraulics H3W offers robust performance characteristics essential for maintaining optimal fluid dynamics in complex hydraulic networks.
