SUN HYDRAULICS
H2P

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

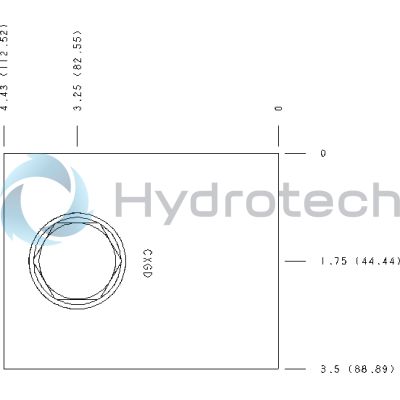

The Sun Hydraulics H2P (H2P) is a versatile line mount manifold designed for hydraulic systems requiring a ninety-degree flow path with reverse flow check and pressure reducing capabilities. This model features an M10x1.5 6H metric mounting hole thread with a depth of 15.7 mm, and it accommodates two mounting holes for secure installation. The manifold includes an open cavity T-17A and is compatible with port size 1 Code 61, ensuring flexibility in system integration. Constructed from robust 6061T651 aluminum, the H2P offers excellent corrosion resistance, making it suitable for demanding environments where durability is essential. It is important to note that this aluminum manifold is not anodized, which helps maintain its fatigue life by avoiding the brittleness that anodizing can introduce. The manifold's design ensures efficient fluid control and management within hydraulic circuits, making it ideal for applications where space constraints or specific directional flow requirements are present. Additionally, users should consider the maximum system pressure when integrating this manifold into their designs, as aluminum manifolds are not rated for pressures exceeding 3000 psi (210 bar).
