SUN HYDRAULICS
LINE MOUNT BODY
H2L

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

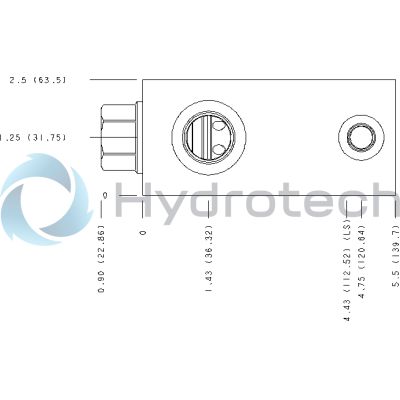

The Sun Hydraulics H2L (Material Number: H2L) is a versatile line mount body designed for hydraulic systems. This model features a ninety-degree configuration with a reverse flow check reducing capability, making it suitable for various fluid control applications. It is constructed with a mounting hole diameter of 0.41 inches (10.4 mm) and offers through-hole mounting depth, accommodating two mounting holes and one open cavity. The port size is SAE 12, which provides compatibility with standard hydraulic fittings. This product utilizes the T-17A cavity type, enhancing its adaptability within hydraulic circuits. The H2L model's construction from 6061 aluminum ensures high corrosion resistance and durability under demanding conditions. However, it should be noted that this manifold is not rated for pressures exceeding 3000 psi (210 bar), as this is the maximum pressure rating for aluminum manifolds regardless of port size or type. This limitation should be carefully considered during system design to ensure safe operation within specified parameters. This Sun Hydraulics line mount manifold is designed to integrate seamlessly into hydraulic systems requiring efficient flow management and reliable performance. Its robust design and material selection make it an ideal choice for applications where corrosion resistance and structural integrity are paramount, while still maintaining cost-effectiveness due to the use of high-quality yet affordable materials like 6061 aluminum.
