SUN HYDRAULICS
H24

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

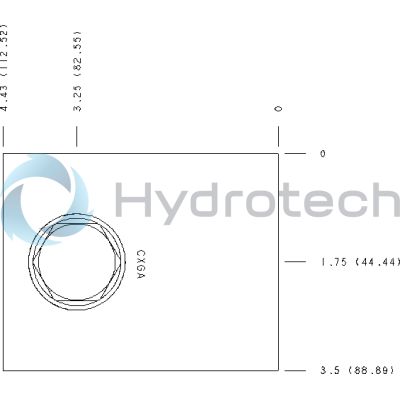

The Sun Hydraulics H24 (Material Number: H24) is a versatile line mount manifold designed with a ninety-degree configuration, featuring reverse flow check and reducing capabilities. It integrates seamlessly into hydraulic systems using a T-17A cavity and is compatible with port size 1 Code 62 fittings. The manifold's aluminum construction, specifically utilizing 6061T651 aluminum, ensures high corrosion resistance and durability while maintaining a lightweight profile. This choice of material makes the manifold suitable for applications requiring reliable performance in corrosive environments without the need for anodizing. The design considerations include an open cavity layout that facilitates easy installation and maintenance. Users should note that the maximum system pressure should not exceed 3000 psi (210 bar) due to material constraints, regardless of port type or size. This manifold is ideal for high-flow hydraulic systems where space optimization and efficient fluid control are critical.
