SUN HYDRAULICS
FSASXAV

$180.50 USD

Tags:

SUN HYDRAULICS
Material:FSASXAV
Model:FSAS-XAV
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FSASXAV (FSASXAV) is a high-accuracy synchronizing flow divider/combiner designed for precise hydraulic applications. This sliding-spool, pressure-compensated device efficiently splits flow in one direction and combines it in the opposite direction, making it ideal for applications requiring synchronized movement of multiple hydraulic cylinders. The FSASXAV features a unique synchronizing capability that allows two cylinders to fully extend and synchronize at the end of their strokes. When one cylinder reaches the end of its stroke, a pressure-compensated reduced flow is metered to or from the second cylinder until it also completes its stroke. This model offers bidirectional static error correction with synchronization flow approximately 15% of the minimum rated input flow. The FSASXAV is physically interchangeable with other flow divider and divider/combiner cartridges of the same frame size, ensuring compatibility across systems. It operates with a maximum pressure of 5000 psi (350 bar) and handles capacities ranging from 0.3 to 1.5 gpm (1 to 6 L/min). Divisional accuracy is maintained at both minimum and maximum input flows, ensuring consistent performance across varying conditions. This model incorporates Sun's floating style construction, which minimizes internal binding risks due to installation torque or machining variations. However, users should note that rigid mechanisms between actuators can lead to cavitation or lockup if not properly accounted for in the system design. Additionally, extreme pressure intensification may occur in certain multi-wheel drive applications. The FSASXAV is designed for easy installation with a T-31A cavity and requires a valve hex size of 7/8 inch (22.2 mm) with an installation torque of 30-35 lbf ft (41-47 Nm).

Description

High accuracy, synchronizing flow divider/combiners are sliding-spool, pressure-compensated devices used to split flow in one direction and combine flow in the opposite direction. With a sychronizing feature, these valves can be used to allow two hydraulic cylinders to fully stroke and synchronize at the end of the stroke. When the first cylinder has reached the end of its stroke, a pressure-compensated, reduced flow is metered to or from the second cylinder until it also reaches the end of its stroke.

All flow divider and divider/combiner cartridges are physically interchangeable (i.e. same flow path, same cavity for a given frame size).
Operating characteristics cause the leg of the circuit with the greatest load to receive the higher percentage of flow in dividing mode. If a rigid mechanism is used to tie actuators together, the lead actuator may pull the lagging actuator and cause it to cavitate.
In applications involving rigid mechanisms between multiple actuators, operating inaccuracy will cause the eventual lock-up of the system. If the mechanical structure is not designed to allow for the operating inaccuracy inherent in the valve, damage may occur.
In motor circuits, rigid frames or mechanisms that tie motors together, and/or complete mechanical synchronized motion of the output shaft of the motors, either by wheels to the pavement or sprockets to conveyors, will contribute to cavitation, lock-up and/or pressure intensification.
Variations in speed and lock-up can be attributed to differences in motor displacement, motor leakage, wheel diameter variance and friction of wheels on the driving surface.
Extreme pressure intensification can occur on multiple wheel drive vehicles.
The synchronization feature provides bi-directional static error correction.
Synchronization flow is approximately 15% of minimum rated input flow.
Differential slip for tractive drive systems must be achieved with orifices in the body/manifold.
Divisional and combining accuracy are equal.
The synchronizing feature only comes into play when any one of the 3 ports is blocked. At that time, flow may occur between the other two ports.
Below the minimum flow rating there is not enough flow for the valve to modulate. It is effectively a tee. If flow starts at zero and rises, there will be no dividing or combining control until the flow reaches the minimum rating.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

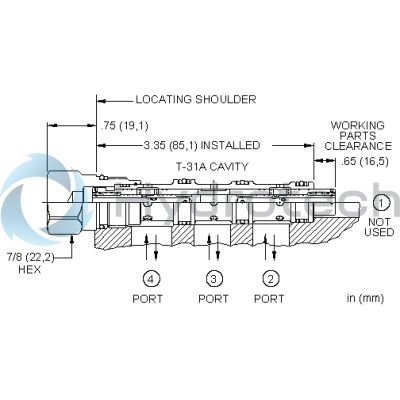

Cavity	T-31A
Series	1
Capacity	.3 - 1.5 gpm1 - 6 L/min.
Maximum Operating Pressure	5000 psi350 bar
Divisional Accuracy at Minimum Input Flow	50% ±3.5%50% ±3.5%
Divisional Accuracy at Max Input Flow	50% ±2.0%50% ±2.0%
Pressure Drop at Minimum Rated Input Flow	30 psi2 bar
Pressure Drop at Maximum Rated Input Flow	350 psi24 bar
Valve Hex Size	7/8 in.22,2 mm
Valve Installation Torque	30 - 35 lbf ft41 - 47 Nm
Model Weight	.60 lb0,30 kg
Seal kit - Cartridge	Viton: 990-031-006

Show FAQ

How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Can I synchronize 2 cylinders with Sun's divider-combiner?	No. Synchronizing 2 cylinders hydraulically is a real problem. A real problem is one which has no solution. Our valves with the synchronizing feature don't synchronize, they provide an error correction at each end of the stroke when the leading cylinder bottoms out. Another means of error correction is cross-port reliefs.
How has Sun solved the hook breaking problem?	We eliminated the hooks. We have a 1 piece spool.
Most of Sun's divider-combiners will do better than the published specs, won't they?	No. Almost all of the error percentage we publish is due to flow forces. Even with a mechanically perfect valve you would see most of the variation.
Most of the dividing-combining inaccuracies will average out, won't they?	Absolutely not. The bell curve does not apply here. In the dividing mode the high pressure leg gets the higher flow and in the combining mode the high pressure leg is the lower flow......every time. The inaccuracies are always there and they accumulate. The high pressure leg goes up farther and comes down less, every time.
What is the synchronizing feature?	It is a static error correction feature. When any one of the 3 ports of a divider/combiner with the synchronizing feature is blocked, flow is possible between the other 2 ports. This "synchronizing" flow is called out in the performance chart and is pressure compensated.When the leading actuator comes to a stop, the other actuator can catch up at a rate determined by the "synchronizing" flow.When the actuators are stopped mid-stroke (port 3 blocked), oil can flow from the high pressure leg to the low pressure leg at a rate determined by the "synchronizing" flow.The "synchronizing" flow does not exist until one port is blocked.The "synchronizing" feature is most effective on applications where the actuators bottom out at at least one end of their strokes.
Why am I getting a higher inaccuracy than Sun claims?	We test every cartridge in 16 modes. High pressure, low pressure, high flow, low flow, divide, and combine.....both legs. What you are probably seeing is the error that occurs as the flow is ramping up to the minimum rated flow. Below the minimum rated flow the valve does not see enough flow to operate correctly.
Why does Sun use 2 slip orifices?	The divider/combiner is an FSDH XAN. Input flow is 15 gpm (57 L/min.). This example depicts orifices that slip about 3 gpm (12 L/min.) at 3000 psi (210 bar) pressure differential between legs. The slip conditions between the 2 examples are the same...please be assured of this. Each orifice on the right is twice the area of the orifice on the left.The pressure drop through the left example is 200 psi (14 bar), the drop through the right example is 130 psi (9 bar).
How big do my slip orifices have to be?	With a typical steered axle application the outside wheels go 15% to 20% farther than the inside wheels. As to how big your slip orifices need to be, there is no correct answer and you are the one that needs to make the compromise. If they are too big you will not have the traction you need at low speeds and if they are too small you will not be able to turn at higher speeds.
