SUN HYDRAULICS
FRFAXBV
$376.50 USD
Tags:
- SUN HYDRAULICS
- Material:FRFAXBV
- Model:FRFA-XBV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FRFAXBV (FRFAXBV) is a bypass-restrictive, fixed-orifice, priority flow control valve designed to manage hydraulic flow efficiently. This model takes an input flow at port 1 and ensures that the priority flow requirement at port 3 is met. Any excess input flow is bypassed out through port 2, which can be utilized in secondary circuits. The valve features a factory-set flow rating with a precision of within 10% of the requested setting and offers a tuneable adjustment control option allowing up to a 22% variation from the nominal preset flow. This adjustment is achieved through three turns of an adjust screw, increasing flow when turned clockwise. The FRFAXBV model is built with Sun's floating style construction, which minimizes the risk of internal parts binding due to excessive installation torque or machining variations in the cavity or cartridge. It has a maximum operating pressure of 5000 psi (350 bar) and can handle an input flow capacity of up to 120 gpm (480 L/min). The valve's sharp-edged orifice design reduces flow variations caused by changes in fluid viscosity, maintaining consistent priority flow regardless of fluctuations in input. With dimensions including a valve hex size of 1-5/8 inches (41.3 mm) and installation torque specifications ranging from 350 to 375 lbf ft (475 to 508 Nm), this model incorporates practical design features for ease of use and reliability under high-pressure conditions. The locknut hex size measures at 9/16 inches (15 mm), with a torque range between 80 to 90 lbf in (9 to 10 Nm). Weighing approximately 2.70 lb (1.25 kg), it comes equipped with Viton seals for robust performance across various applications where precise hydraulic control is crucial.
The Sun Hydraulics FRFAXBV (FRFAXBV) is a bypass-restrictive, fixed-orifice, priority flow control valve designed to manage hydraulic flow efficiently. This model takes an input flow at port 1 and ensures that the priority flow requirement at port 3 is met. Any excess input flow is bypassed out through port 2, which can be utilized in secondary circuits. The valve features a factory-set flow rating with a precision of within 10% of the requested setting and offers a tuneable adjustment control option allowing up to a 22% variation from the nominal preset flow. This adjustment is achieved through three turns of an adjust screw, increasing flow when turned clockwise. The FRFAXBV model is built with Sun's floating style construction, which minimizes the risk of internal parts binding due to excessive installation torque or machining variations in the cavity or cartridge. It has a maximum operating pressure of 5000 psi (350 bar) and can handle an input flow capacity of up to 120 gpm (480 L/min). The valve's sharp-edged orifice design reduces flow variations caused by changes in fluid viscosity, maintaining consistent priority flow regardless of fluctuations in input. With dimensions including a valve hex size of 1-5/8 inches (41.3 mm) and installation torque specifications ranging from 350 to 375 lbf ft (475 to 508 Nm), this model incorporates practical design features for ease of use and reliability under high-pressure conditions. The locknut hex size measures at 9/16 inches (15 mm), with a torque range between 80 to 90 lbf in (9 to 10 Nm). Weighing approximately 2.70 lb (1.25 kg), it comes equipped with Viton seals for robust performance across various applications where precise hydraulic control is crucial.

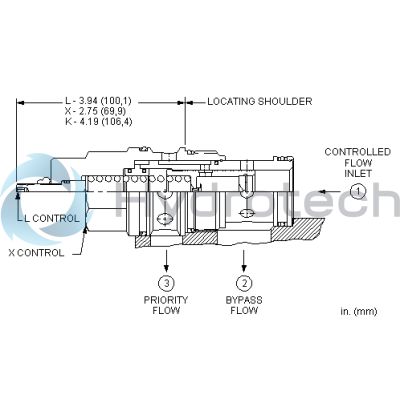

Bypass/restrictive, fixed-orifice, priority flow controls take an input flow at port 1 and use it to satisfy the priority flow at port 3. If the input flow exceeds the priority flow requirement, the excess is bypassed out port 2. The bypass flow may be used in a secondary circuit.
- Customer must specify a flow rating. Factory set flow ratings are within +/- 10% of the requested setting.
- Maximum pressure at port 3 should be limited to 3000 psi (210 bar).
- A tuneable adjustment control option provides up to +/- 22% variation from the nominal factory pre-set flow. Adjustment is done with +/- 3 turns of the adjust screw. Screw in (CW) to increase flow.
- Both priority and bypass flow are usable up to the system operating pressure.
- Priority remains relatively constant regardless of variation in input flow.
- Bypass flow is not available until priority flow requirements are satisfied.
- Pressure at the bypass port (port 2) may exceed pressure at the priority port (port 3).
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-19A |
| Series | 4 |
| Capacity | 50 gpm200 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Input Flow | 120 gpm480 L/min. |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft475 - 508 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 2.70 lb1,25 kg |
| Seal kit - Cartridge | Viton: 990-019-006 |
