SUN HYDRAULICS
FREAXAV
$192.80 USD
Tags:
- SUN HYDRAULICS
- Material:FREAXAV
- Model:FREA-XAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FREAXAV (Material Number: FREAXAV) is a bypass-restrictive, fixed-orifice, priority flow control valve designed to manage input flow at port 1, ensuring priority flow at port 3. If the input flow surpasses the priority requirement, excess flow is directed out through port 2 for potential use in secondary circuits. Users must specify a desired flow rating, with factory settings accurate within 10% of the request. The valve allows for a tunable adjustment control option offering up to 22% variation from the nominal preset flow via an adjustment screw that can be turned clockwise to increase flow. Both priority and bypass flows are functional up to the system's operating pressure, maintaining relatively constant priority despite input variations. The bypass function activates only after satisfying priority requirements, with bypass port pressure potentially exceeding that of the priority port. The valve features a sharp-edged orifice design to minimize flow variations due to viscosity changes and incorporates Sun's floating style construction to prevent internal parts binding due to excessive installation torque or cavity/cartridge machining variations. It fits into Cavity T-17A and belongs to Series 3, with a capacity of 25 gpm (95 L/min) and a maximum operating pressure of 5000 psi (350 bar). The maximum input flow is rated at 60 gpm (240 L/min). Installation specifics include a valve hex size of 1-1/4 inches (31.8 mm) and installation torque between 150 -160 lbf ft (203 -217 Nm). The adjustment screw requires an internal hex size of 5/32 inches (4 mm), while the locknut has a hex size of 9/16 inches (15 mm) with torque specifications between 80 -90 lbf in (9 -10 Nm). The model weighs approximately 1.25 lb (0.60 kg) and uses Viton seal kits for cartridge sealing needs.
The Sun Hydraulics FREAXAV (Material Number: FREAXAV) is a bypass-restrictive, fixed-orifice, priority flow control valve designed to manage input flow at port 1, ensuring priority flow at port 3. If the input flow surpasses the priority requirement, excess flow is directed out through port 2 for potential use in secondary circuits. Users must specify a desired flow rating, with factory settings accurate within 10% of the request. The valve allows for a tunable adjustment control option offering up to 22% variation from the nominal preset flow via an adjustment screw that can be turned clockwise to increase flow. Both priority and bypass flows are functional up to the system's operating pressure, maintaining relatively constant priority despite input variations. The bypass function activates only after satisfying priority requirements, with bypass port pressure potentially exceeding that of the priority port. The valve features a sharp-edged orifice design to minimize flow variations due to viscosity changes and incorporates Sun's floating style construction to prevent internal parts binding due to excessive installation torque or cavity/cartridge machining variations. It fits into Cavity T-17A and belongs to Series 3, with a capacity of 25 gpm (95 L/min) and a maximum operating pressure of 5000 psi (350 bar). The maximum input flow is rated at 60 gpm (240 L/min). Installation specifics include a valve hex size of 1-1/4 inches (31.8 mm) and installation torque between 150 -160 lbf ft (203 -217 Nm). The adjustment screw requires an internal hex size of 5/32 inches (4 mm), while the locknut has a hex size of 9/16 inches (15 mm) with torque specifications between 80 -90 lbf in (9 -10 Nm). The model weighs approximately 1.25 lb (0.60 kg) and uses Viton seal kits for cartridge sealing needs.

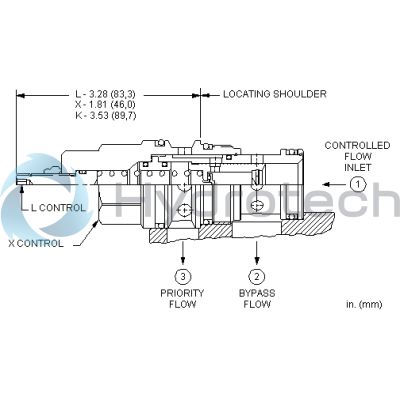

Bypass/restrictive, fixed-orifice, priority flow controls take an input flow at port 1 and use it to satisfy the priority flow at port 3. If the input flow exceeds the priority flow requirement, the excess is bypassed out port 2. The bypass flow may be used in a secondary circuit.
- Customer must specify a flow rating. Factory set flow ratings are within +/- 10% of the requested setting.
- Maximum pressure at port 3 should be limited to 3000 psi (210 bar).
- A tuneable adjustment control option provides up to +/- 22% variation from the nominal factory pre-set flow. Adjustment is done with +/- 3 turns of the adjust screw. Screw in (CW) to increase flow.
- Both priority and bypass flow are usable up to the system operating pressure.
- Priority remains relatively constant regardless of variation in input flow.
- Bypass flow is not available until priority flow requirements are satisfied.
- Pressure at the bypass port (port 2) may exceed pressure at the priority port (port 3).
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 25 gpm95 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Input Flow | 60 gpm240 L/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 1.25 lb0,60 kg |
| Seal kit - Cartridge | Viton: 990-017-006 |
