SUN HYDRAULICS
FREALBN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

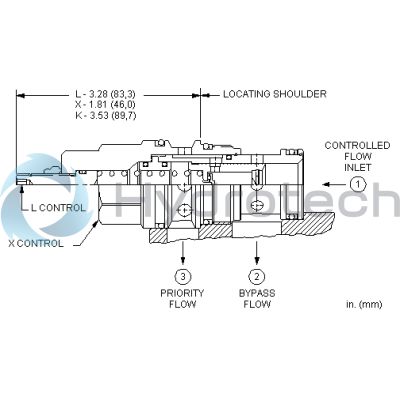

The Sun Hydraulics FREALBN (Material Number: FREALBN) is a bypass restrictive, fixed orifice, priority flow control valve designed to manage hydraulic flow with precision. It takes input flow at port 1 and directs it to satisfy the priority flow at port 3. Any excess flow beyond the priority requirement is bypassed out through port 2, which can be utilized in secondary circuits. This valve requires a customer-specified flow rating, with factory settings accurate within 10% of the requested specification. The valve features a tuneable adjustment control option that allows up to a 22% variation from the nominal factory preset flow, adjusted via three turns of an internal hex screw. The maximum pressure at port 3 should not exceed 3000 psi (210 bar), while both priority and bypass flows are functional up to the system's operating pressure. The design ensures that priority remains constant despite variations in input flow, and bypass flow only becomes available once priority demands are met. Notably, pressure at the bypass port may surpass that at the priority port. The sharp-edged orifice design minimizes fluctuations due to viscosity changes. This model incorporates Sun's floating style construction to mitigate risks of internal part binding from excessive installation torque or machining discrepancies in cavities or cartridges. It fits into cavity T-17A and belongs to series 3 with a capacity of 25 gpm (95 L/min) and can handle maximum operating pressures of up to 5000 psi (350 bar). The maximum input flow is rated at 60 gpm (240 L/min). For installation, the valve requires a hex size of 1-1/4 inches with a torque range between 150 -160 lbf ft (203 -217 Nm).
