SUN HYDRAULICS
FREAKBV
$206.80 USD
Tags:
- SUN HYDRAULICS
- Material:FREAKBV
- Model:FREA-KBV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FREAKBV (Material Number: FREAKBV) is a bypass-restrictive, fixed-orifice, priority flow control valve designed to manage hydraulic flow efficiently. This valve takes an input flow at port 1 and directs it to satisfy the priority flow at port 3, with any excess being bypassed out of port 2 for use in secondary circuits. The valve requires a specified flow rating from the customer, with factory-set ratings accurate within 10% of the requested setting. It features a tuneable adjustment control option allowing a 22% variation from the nominal factory preset flow, adjustable with three turns of an adjust screw. The FREAKBV can handle maximum operating pressures of up to 5000 psi (350 bar) and supports a maximum input flow of 60 gpm (240 L/min). The valve's sharp-edged orifice design minimizes variations due to viscosity changes, ensuring consistent performance across different conditions. It incorporates Sun\u2019s floating style construction to reduce the risk of internal parts binding due to excessive installation torque or cavity/cartridge machining variations. For optimal performance, the maximum pressure at port 3 should be limited to 3000 psi (210 bar), and both priority and bypass flows are usable up to the system's operating pressure. The priority remains constant regardless of input flow variations, while bypass flow is only available once priority requirements are met. The FREAKBV is compatible with T-17A cavities and has a capacity of up to 25 gpm (95 L/min). Its compact design includes a valve hex size of 1-1/4 inches (31.8 mm) and requires an installation torque between 150 -160 lbf ft (203 -217 Nm).
The Sun Hydraulics FREAKBV (Material Number: FREAKBV) is a bypass-restrictive, fixed-orifice, priority flow control valve designed to manage hydraulic flow efficiently. This valve takes an input flow at port 1 and directs it to satisfy the priority flow at port 3, with any excess being bypassed out of port 2 for use in secondary circuits. The valve requires a specified flow rating from the customer, with factory-set ratings accurate within 10% of the requested setting. It features a tuneable adjustment control option allowing a 22% variation from the nominal factory preset flow, adjustable with three turns of an adjust screw. The FREAKBV can handle maximum operating pressures of up to 5000 psi (350 bar) and supports a maximum input flow of 60 gpm (240 L/min). The valve's sharp-edged orifice design minimizes variations due to viscosity changes, ensuring consistent performance across different conditions. It incorporates Sun\u2019s floating style construction to reduce the risk of internal parts binding due to excessive installation torque or cavity/cartridge machining variations. For optimal performance, the maximum pressure at port 3 should be limited to 3000 psi (210 bar), and both priority and bypass flows are usable up to the system's operating pressure. The priority remains constant regardless of input flow variations, while bypass flow is only available once priority requirements are met. The FREAKBV is compatible with T-17A cavities and has a capacity of up to 25 gpm (95 L/min). Its compact design includes a valve hex size of 1-1/4 inches (31.8 mm) and requires an installation torque between 150 -160 lbf ft (203 -217 Nm).

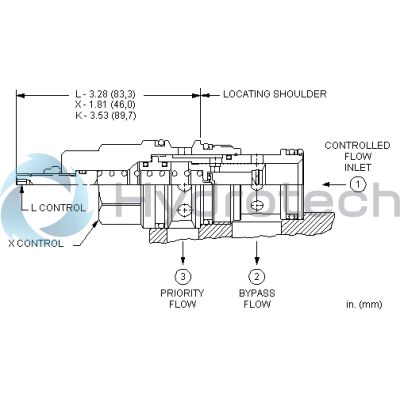

Bypass/restrictive, fixed-orifice, priority flow controls take an input flow at port 1 and use it to satisfy the priority flow at port 3. If the input flow exceeds the priority flow requirement, the excess is bypassed out port 2. The bypass flow may be used in a secondary circuit.
- Customer must specify a flow rating. Factory set flow ratings are within +/- 10% of the requested setting.
- Maximum pressure at port 3 should be limited to 3000 psi (210 bar).
- A tuneable adjustment control option provides up to +/- 22% variation from the nominal factory pre-set flow. Adjustment is done with +/- 3 turns of the adjust screw. Screw in (CW) to increase flow.
- Both priority and bypass flow are usable up to the system operating pressure.
- Priority remains relatively constant regardless of variation in input flow.
- Bypass flow is not available until priority flow requirements are satisfied.
- Pressure at the bypass port (port 2) may exceed pressure at the priority port (port 3).
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 25 gpm95 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Input Flow | 60 gpm240 L/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 1.25 lb0,60 kg |
| Seal kit - Cartridge | Viton: 990-017-006 |
