SUN HYDRAULICS
FRDBXAN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

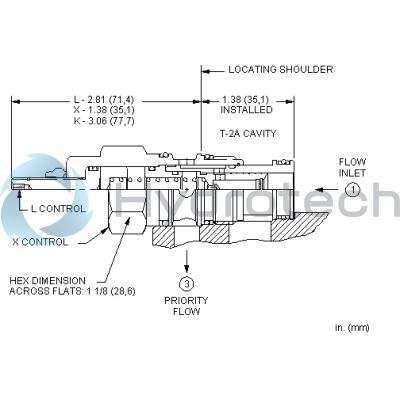

The Sun Hydraulics FRDBXAN (Material Number: FRDBXAN) is a 2-port restrictive flow control valve designed to fit into a 3-port cavity, with no connection to port 2. This valve requires the customer to specify a flow rating, and factory-set flow ratings are accurate within 10% of the requested setting. It is designed for applications where maximum pressure at port 3 should be limited to 3000 psi (210 bar). The sharp-edged orifice design minimizes flow variations due to viscosity changes, ensuring reliable performance across different fluid conditions. A tuneable adjustment control option allows up to a 25% variation from the nominal factory preset flow, with adjustments made using three turns of the adjust screw; turning clockwise increases the flow. The valve incorporates Sun's floating style construction, which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. It fits into a T-2A cavity and belongs to Series 2, with a capacity of 12 gpm (45 L/min). The maximum operating pressure is rated at 5000 psi (350 bar), and it can handle a maximum input flow of up to 30 gpm (120 L/min). The valve's hex size measures 1-1/8 inches (28.6 mm), and it requires an installation torque between 45 and 50 lbf-ft (61-68 Nm). The adjustment screw features an internal hex size of 5/32 inches (4 mm), while the locknut has a hex size of 9/16 inches (15 mm) and requires a torque between 80 and 90 lbf-in (9-10 Nm). The model weighs approximately .40 lb (.20 kg) and uses Viton seal kits for optimal sealing performance.
