SUN HYDRAULICS
FRCAXBV
$65.00 USD
Tags:
- SUN HYDRAULICS
- Material:FRCAXBV
- Model:FRCA-XBV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FRCAXBV (FRCAXBV) is a bypass-restrictive, fixed-orifice, priority flow control valve designed to manage hydraulic flow efficiently. It takes input flow at port 1 and prioritizes the flow to port 3. If the input exceeds the required priority flow, the excess is diverted to port 2 for secondary circuit use. This model requires a specified factory-set flow rating with a precision of within 10% of the requested setting. Both priority and bypass flows can be utilized up to the system's operating pressure of 5000 psi (350 bar). The valve maintains consistent priority flow despite variations in input flow, though bypass flow becomes available only after fulfilling priority needs. Notably, pressure at the bypass port can exceed that at the priority port. The FRCAXBV features a sharp-edged orifice design that minimizes variations caused by viscosity changes and offers an adjustable control option allowing up to a 25% variation from its nominal preset flow through three turns of an adjust screw. It incorporates Sun's floating style construction to reduce internal binding risks due to excessive installation torque or machining differences. This model fits into cavity T-11A, belongs to series 1, and has a capacity of 6 gpm (23 L/min) with a maximum input flow of 15 gpm (60 L/min). Installation requires specific torque settings: valve installation torque ranges from 30-35 lbf ft (41-47 Nm), with an adjustment screw internal hex size of 5/32 in. (4 mm) and locknut torque between 80-90 lbf in. (9-10 Nm). The model weighs approximately .30 lb (.15 kg), and uses Viton seal kit number 990011006 for maintenance and repair needs.
The Sun Hydraulics FRCAXBV (FRCAXBV) is a bypass-restrictive, fixed-orifice, priority flow control valve designed to manage hydraulic flow efficiently. It takes input flow at port 1 and prioritizes the flow to port 3. If the input exceeds the required priority flow, the excess is diverted to port 2 for secondary circuit use. This model requires a specified factory-set flow rating with a precision of within 10% of the requested setting. Both priority and bypass flows can be utilized up to the system's operating pressure of 5000 psi (350 bar). The valve maintains consistent priority flow despite variations in input flow, though bypass flow becomes available only after fulfilling priority needs. Notably, pressure at the bypass port can exceed that at the priority port. The FRCAXBV features a sharp-edged orifice design that minimizes variations caused by viscosity changes and offers an adjustable control option allowing up to a 25% variation from its nominal preset flow through three turns of an adjust screw. It incorporates Sun's floating style construction to reduce internal binding risks due to excessive installation torque or machining differences. This model fits into cavity T-11A, belongs to series 1, and has a capacity of 6 gpm (23 L/min) with a maximum input flow of 15 gpm (60 L/min). Installation requires specific torque settings: valve installation torque ranges from 30-35 lbf ft (41-47 Nm), with an adjustment screw internal hex size of 5/32 in. (4 mm) and locknut torque between 80-90 lbf in. (9-10 Nm). The model weighs approximately .30 lb (.15 kg), and uses Viton seal kit number 990011006 for maintenance and repair needs.

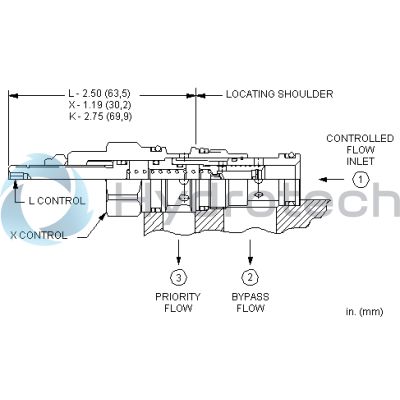

Bypass/restrictive, fixed-orifice, priority flow controls take an input flow at port 1 and use it to satisfy the priority flow at port 3. If the input flow exceeds the priority flow requirement, the excess is bypassed out port 2. The bypass flow may be used in a secondary circuit.
- Customer must specify a flow rating. Factory set flow ratings are within +/- 10% of the requested setting.
- Both priority and bypass flow are usable up to the system operating pressure.
- Priority remains relatively constant regardless of variation in input flow.
- Bypass flow is not available until priority flow requirements are satisfied.
- Pressure at the bypass port (port 2) may exceed pressure at the priority port (port 3).
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- A tuneable adjustment control option provides up to +/- 25% variation from the nominal factory pre-set flow. Adjustment is done with +/- 3 turns of the adjust screw. Screw in (CW) to increase flow.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 6 gpm23 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Input Flow | 15 gpm60 L/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
