SUN HYDRAULICS
FRCALBV
$73.00 USD
Tags:
- SUN HYDRAULICS
- Material:FRCALBV
- Model:FRCA-LBV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FRCALBV (FRCALBV) is a bypass-restrictive, fixed-orifice priority flow control valve designed to manage hydraulic flow efficiently. This valve takes an input flow at port 1 and prioritizes satisfying the flow requirement at port 3. Any excess input flow beyond this priority requirement is bypassed out through port 2, which can be utilized in a secondary circuit. The factory sets the flow ratings within 10% of the requested setting, ensuring that both priority and bypass flows are usable up to the system's operating pressure of 5000 psi (350 bar). The design ensures that priority remains relatively constant despite variations in input flow, while bypass flow becomes available only after fulfilling the priority requirements. The sharp-edged orifice design minimizes variations due to viscosity changes, and an optional tuneable adjustment control allows for a 25% variation from the nominal factory preset flow with an adjustment screw. The Sun Hydraulics FRCALBV incorporates floating style construction to reduce the risk of internal parts binding due to excessive installation torque or machining variations. It fits into a T-11A cavity and has a series capacity of 6 gpm (23 L/min) with a maximum input flow of 15 gpm (60 L/min). Its compact design includes a valve hex size of 7/8 inch (22.2 mm) and requires an installation torque between 30-35 lbf ft (41-47 Nm). The adjustment screw has an internal hex size of 5/32 inch (4 mm), with a locknut hex size of 9/16 inch (15 mm) requiring torque between 80-90 lbf in (9-10 Nm). Weighing just .30 lb (0.15 kg), it is equipped with Viton seals for durability and reliability in various applications where precise hydraulic control is essential.
The Sun Hydraulics FRCALBV (FRCALBV) is a bypass-restrictive, fixed-orifice priority flow control valve designed to manage hydraulic flow efficiently. This valve takes an input flow at port 1 and prioritizes satisfying the flow requirement at port 3. Any excess input flow beyond this priority requirement is bypassed out through port 2, which can be utilized in a secondary circuit. The factory sets the flow ratings within 10% of the requested setting, ensuring that both priority and bypass flows are usable up to the system's operating pressure of 5000 psi (350 bar). The design ensures that priority remains relatively constant despite variations in input flow, while bypass flow becomes available only after fulfilling the priority requirements. The sharp-edged orifice design minimizes variations due to viscosity changes, and an optional tuneable adjustment control allows for a 25% variation from the nominal factory preset flow with an adjustment screw. The Sun Hydraulics FRCALBV incorporates floating style construction to reduce the risk of internal parts binding due to excessive installation torque or machining variations. It fits into a T-11A cavity and has a series capacity of 6 gpm (23 L/min) with a maximum input flow of 15 gpm (60 L/min). Its compact design includes a valve hex size of 7/8 inch (22.2 mm) and requires an installation torque between 30-35 lbf ft (41-47 Nm). The adjustment screw has an internal hex size of 5/32 inch (4 mm), with a locknut hex size of 9/16 inch (15 mm) requiring torque between 80-90 lbf in (9-10 Nm). Weighing just .30 lb (0.15 kg), it is equipped with Viton seals for durability and reliability in various applications where precise hydraulic control is essential.

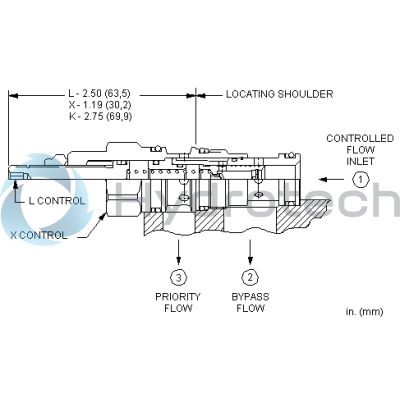

Bypass/restrictive, fixed-orifice, priority flow controls take an input flow at port 1 and use it to satisfy the priority flow at port 3. If the input flow exceeds the priority flow requirement, the excess is bypassed out port 2. The bypass flow may be used in a secondary circuit.
- Customer must specify a flow rating. Factory set flow ratings are within +/- 10% of the requested setting.
- Both priority and bypass flow are usable up to the system operating pressure.
- Priority remains relatively constant regardless of variation in input flow.
- Bypass flow is not available until priority flow requirements are satisfied.
- Pressure at the bypass port (port 2) may exceed pressure at the priority port (port 3).
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- A tuneable adjustment control option provides up to +/- 25% variation from the nominal factory pre-set flow. Adjustment is done with +/- 3 turns of the adjust screw. Screw in (CW) to increase flow.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 6 gpm23 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Input Flow | 15 gpm60 L/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
