SUN HYDRAULICS
FRBAXAV
$65.00 USD
Tags:
- SUN HYDRAULICS
- Material:FRBAXAV
- Model:FRBA-XAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FRBAXAV (Material Number: FRBAXAV) is a bypass-restrictive, fixed-orifice, priority flow control valve designed to manage hydraulic flow efficiently. This valve takes an input flow at port 1 and prioritizes the flow at port 3. If the input surpasses the priority requirement, the surplus is redirected through port 2 for use in secondary circuits. Users must specify a desired flow rating, with factory settings accurate to within 15% of this specification. Additionally, an adjustable control option allows for up to a 20% variation from the nominal preset by turning an adjustment screw three times clockwise to increase flow. Both priority and bypass flows can operate up to system pressure limits, maintaining a consistent priority flow despite input fluctuations. The bypass function only activates once priority needs are met, and pressure at port 2 can exceed that at port 3 if necessary. The valve features a sharp-edged orifice design that minimizes variations due to viscosity changes and employs Sun's floating style construction to reduce binding risks during installation or machining variations. It fits into cavity T-163A, with a series designation of 0 and supports capacities up to 3 gpm (11 L/min). The maximum operating pressure is rated at 5000 psi (350 bar), with input flows reaching up to 7.5 gpm (30 L/min). Installation requires a torque of 20-25 lbf ft (27-34 Nm) using a valve hex size of 3/4 inch (19.1 mm). The adjustment screw has an internal hex size of 5/32 inch (4 mm), while the locknut hex measures at 9/16 inch (15 mm) with torque requirements between 80-90 lbf in (9-10 Nm). Weighing just .20 lb (.10 kg), it includes Viton seals for optimal performance and reliability in demanding applications.
The Sun Hydraulics FRBAXAV (Material Number: FRBAXAV) is a bypass-restrictive, fixed-orifice, priority flow control valve designed to manage hydraulic flow efficiently. This valve takes an input flow at port 1 and prioritizes the flow at port 3. If the input surpasses the priority requirement, the surplus is redirected through port 2 for use in secondary circuits. Users must specify a desired flow rating, with factory settings accurate to within 15% of this specification. Additionally, an adjustable control option allows for up to a 20% variation from the nominal preset by turning an adjustment screw three times clockwise to increase flow. Both priority and bypass flows can operate up to system pressure limits, maintaining a consistent priority flow despite input fluctuations. The bypass function only activates once priority needs are met, and pressure at port 2 can exceed that at port 3 if necessary. The valve features a sharp-edged orifice design that minimizes variations due to viscosity changes and employs Sun's floating style construction to reduce binding risks during installation or machining variations. It fits into cavity T-163A, with a series designation of 0 and supports capacities up to 3 gpm (11 L/min). The maximum operating pressure is rated at 5000 psi (350 bar), with input flows reaching up to 7.5 gpm (30 L/min). Installation requires a torque of 20-25 lbf ft (27-34 Nm) using a valve hex size of 3/4 inch (19.1 mm). The adjustment screw has an internal hex size of 5/32 inch (4 mm), while the locknut hex measures at 9/16 inch (15 mm) with torque requirements between 80-90 lbf in (9-10 Nm). Weighing just .20 lb (.10 kg), it includes Viton seals for optimal performance and reliability in demanding applications.

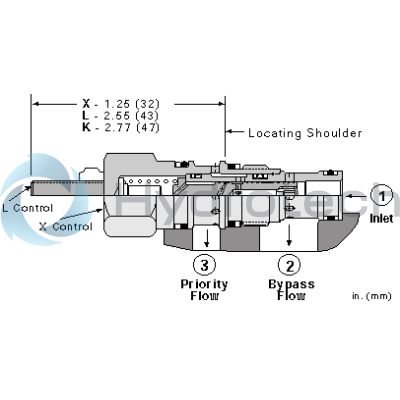

Bypass/restrictive, fixed-orifice, priority flow controls take an input flow at port 1 and use it to satisfy the priority flow at port 3. If the input flow exceeds the priority flow requirement, the excess is bypassed out port 2. The bypass flow may be used in a secondary circuit.
- Customer must specify a flow rating. Factory set flow ratings are within +/- 15% of the requested setting.
- A tuneable adjustment control option provides up to +/- 20% variation from the nominal factory pre-set flow. Adjustment is done with +/- 3 turns of the adjust screw. Screw in (CW) to increase flow.
- Both priority and bypass flow are usable up to the system operating pressure.
- Priority remains relatively constant regardless of variation in input flow.
- Bypass flow is not available until priority flow requirements are satisfied.
- Pressure at the bypass port (port 2) may exceed pressure at the priority port (port 3).
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- Maximum pressure at port 3 should be limited to 3000 psi (210 bar).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-163A |
| Series | 0 |
| Capacity | 3 gpm11 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Input Flow | 7.5 gpm30 L/min. |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 34 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-163-006 |
