SUN HYDRAULICS
FRBAXAN
$57.00 USD
Tags:
- SUN HYDRAULICS
- Material:FRBAXAN
- Model:FRBA-XAN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FRBAXAN (Material Number: FRBAXAN) is a bypass-restrictive, fixed-orifice, priority flow control valve designed to manage hydraulic flow with precision and reliability. This component takes an input flow at port 1 and directs it to satisfy the priority flow at port 3. Any excess input flow is bypassed out through port 2, which can be utilized in secondary circuits. The valve requires the customer to specify a flow rating, with factory-set flow ratings within 15% of the requested setting. An optional tunable adjustment control allows for a 20% variation from the nominal factory preset flow using an adjustment screw. Both priority and bypass flows can operate up to the system's maximum pressure, with priority remaining relatively constant despite variations in input flow. The design incorporates a sharp-edged orifice that minimizes variations due to viscosity changes. The maximum pressure at port 3 should not exceed 3000 psi (210 bar), while the overall maximum operating pressure is rated at 5000 psi (350 bar). It has a capacity of handling up to 3 gpm (11 L/min) and supports a maximum input flow of up to 7.5 gpm (30 L/min). The FRBAXAN model features Sun's floating style construction, which reduces the risk of internal parts binding due to excessive installation torque or machining variations in cavities and cartridges. The valve's hex size measures \u00be inch (19.1 mm), with an installation torque of between 20-25 lbf ft (27-34 Nm). The internal hex size for the adjustment screw is ^5/32 inch (4 mm), while the locknut hex size is ^9/16 inch (15 mm) with a torque specification of between 80-90 lbf in (9-10 Nm). Weighing just .20 lb (.10 kg), this compact yet robust component also comes with an optional Viton seal kit for enhanced durability and performance in demanding applications.
The Sun Hydraulics FRBAXAN (Material Number: FRBAXAN) is a bypass-restrictive, fixed-orifice, priority flow control valve designed to manage hydraulic flow with precision and reliability. This component takes an input flow at port 1 and directs it to satisfy the priority flow at port 3. Any excess input flow is bypassed out through port 2, which can be utilized in secondary circuits. The valve requires the customer to specify a flow rating, with factory-set flow ratings within 15% of the requested setting. An optional tunable adjustment control allows for a 20% variation from the nominal factory preset flow using an adjustment screw. Both priority and bypass flows can operate up to the system's maximum pressure, with priority remaining relatively constant despite variations in input flow. The design incorporates a sharp-edged orifice that minimizes variations due to viscosity changes. The maximum pressure at port 3 should not exceed 3000 psi (210 bar), while the overall maximum operating pressure is rated at 5000 psi (350 bar). It has a capacity of handling up to 3 gpm (11 L/min) and supports a maximum input flow of up to 7.5 gpm (30 L/min). The FRBAXAN model features Sun's floating style construction, which reduces the risk of internal parts binding due to excessive installation torque or machining variations in cavities and cartridges. The valve's hex size measures \u00be inch (19.1 mm), with an installation torque of between 20-25 lbf ft (27-34 Nm). The internal hex size for the adjustment screw is ^5/32 inch (4 mm), while the locknut hex size is ^9/16 inch (15 mm) with a torque specification of between 80-90 lbf in (9-10 Nm). Weighing just .20 lb (.10 kg), this compact yet robust component also comes with an optional Viton seal kit for enhanced durability and performance in demanding applications.

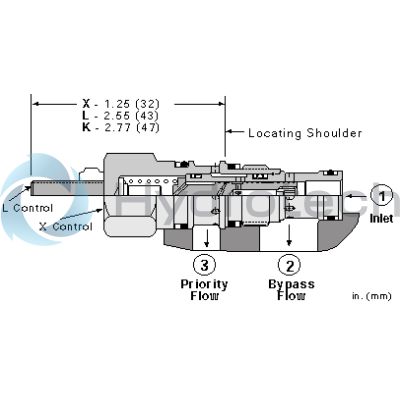

Bypass/restrictive, fixed-orifice, priority flow controls take an input flow at port 1 and use it to satisfy the priority flow at port 3. If the input flow exceeds the priority flow requirement, the excess is bypassed out port 2. The bypass flow may be used in a secondary circuit.
- Customer must specify a flow rating. Factory set flow ratings are within +/- 15% of the requested setting.
- A tuneable adjustment control option provides up to +/- 20% variation from the nominal factory pre-set flow. Adjustment is done with +/- 3 turns of the adjust screw. Screw in (CW) to increase flow.
- Both priority and bypass flow are usable up to the system operating pressure.
- Priority remains relatively constant regardless of variation in input flow.
- Bypass flow is not available until priority flow requirements are satisfied.
- Pressure at the bypass port (port 2) may exceed pressure at the priority port (port 3).
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- Maximum pressure at port 3 should be limited to 3000 psi (210 bar).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-163A |
| Series | 0 |
| Capacity | 3 gpm11 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Input Flow | 7.5 gpm30 L/min. |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 34 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-163-006 |
