SUN HYDRAULICS
FLOW CTRL CART
FDBAHAN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

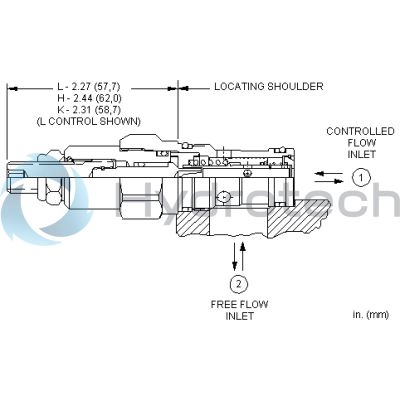

The Sun Hydraulics FDBAHAN (Material Number: FDBAHAN) is a fully adjustable, pressure-compensated flow control cartridge with a reverse flow check, designed for precise flow regulation in both meter-in and meter-out applications. This component is particularly effective in systems experiencing wide pressure fluctuations, as it can be infinitely adjusted from nearly closed to the maximum flow capacity of 6 gpm (23 L/min). The integral high-capacity check valve ensures unrestricted flow from port 2 to port 1. The cartridge is designed to be physically and functionally interchangeable with other 2-port flow control cartridges of the same frame size, although extension dimensions may vary from the mounting surface. The FDBAHAN model features a balanced adjustment mechanism for easy operation even under high pressures, and its sharp-edged orifice design minimizes variations due to viscosity changes. When the adjustment mechanism is set to shutoff, minimum leakage is limited to 0.1 gpm (0.4 L/min). It should be noted that cartridges with EPDM seals are suitable for systems using phosphate ester fluids but are susceptible to damage if exposed to petroleum-based fluids. The cartridge fits into a T-13A cavity and belongs to Series 1. It can withstand a maximum operating pressure of 5000 psi (350 bar). The adjustment screw has an internal hex size of 5/32 inches (4 mm), while the locknut hex size is 9/16 inches (15 mm), requiring a locknut torque of 80-90 lbf-in (9-10 Nm). The valve itself weighs .40 lb (0.20 kg) and requires an installation torque of 30-35 lbf-ft (41-47 Nm).
