SUN HYDRAULICS
DTCAZCV624
$784.30 USD
Tags:
- SUN HYDRAULICS
- Material:DTCAZCV624
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

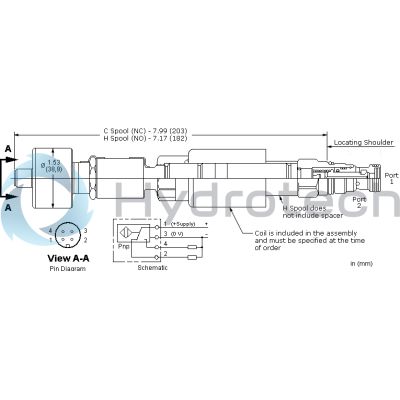

The Sun Hydraulics DTCAZCV624 (DTCAZCV624) is a solenoid-operated, 2-way, 2-position cartridge valve that features a direct-acting, poppet-style directional design. This construction ensures extremely low leakage, even under sudden pressure changes, thanks to its fluid compressibility prevention mechanism. The valve includes a position switch for confirmation in the non-energized state and requires a coil ordered separately. It is supplied as a sealed unit and must be returned to the factory for any service or adjustments, with tampering voiding the warranty. The position switch adheres to CE approvals and installation necessitates tools like a crow's foot wrench due to the design constraints. The DTCAZCV624 is fatigue-rated for 5000 psi (350 bar) service and operates without minimum hydraulic pressure requirements, making it ideal for load-holding applications. In power failure scenarios, it springs closed automatically. Models featuring D or L control include a detent mechanism suitable for temporary actuation with an approximate mechanical life expectancy of 7,000 cycles. Utilizing a wet armature design allows fluid exposure to coil-generated heat, which can affect certain fluids like water-glycol mixtures over time. This valve incorporates Sun's floating style construction to reduce internal part binding risks due to installation torque or machining variations. It fits into cavity T-13A and belongs to Series 1 with a flow capacity of 6 gpm (23 L/min). The maximum operating pressure is set at 5000 psi (350 bar), with typical response times around 50 ms and maximum leakage at 10 drops/min at specified conditions. The solenoid tube diameter measures .75 inches (19 mm), requiring installation torque between 30\u201335 lbf ft (41\u201347 Nm). A Viton seal kit is available for maintenance purposes.
The Sun Hydraulics DTCAZCV624 (DTCAZCV624) is a solenoid-operated, 2-way, 2-position cartridge valve that features a direct-acting, poppet-style directional design. This construction ensures extremely low leakage, even under sudden pressure changes, thanks to its fluid compressibility prevention mechanism. The valve includes a position switch for confirmation in the non-energized state and requires a coil ordered separately. It is supplied as a sealed unit and must be returned to the factory for any service or adjustments, with tampering voiding the warranty. The position switch adheres to CE approvals and installation necessitates tools like a crow's foot wrench due to the design constraints. The DTCAZCV624 is fatigue-rated for 5000 psi (350 bar) service and operates without minimum hydraulic pressure requirements, making it ideal for load-holding applications. In power failure scenarios, it springs closed automatically. Models featuring D or L control include a detent mechanism suitable for temporary actuation with an approximate mechanical life expectancy of 7,000 cycles. Utilizing a wet armature design allows fluid exposure to coil-generated heat, which can affect certain fluids like water-glycol mixtures over time. This valve incorporates Sun's floating style construction to reduce internal part binding risks due to installation torque or machining variations. It fits into cavity T-13A and belongs to Series 1 with a flow capacity of 6 gpm (23 L/min). The maximum operating pressure is set at 5000 psi (350 bar), with typical response times around 50 ms and maximum leakage at 10 drops/min at specified conditions. The solenoid tube diameter measures .75 inches (19 mm), requiring installation torque between 30\u201335 lbf ft (41\u201347 Nm). A Viton seal kit is available for maintenance purposes.
This solenoid-operated 2-way, 2-position cartridge is a direct-acting, poppet-style directional valve. Due to the poppet-style construction, this valve has extremely low leakage.
Many poppet style directional valves pass a small amount of fluid when the pressure across them changes suddenly. This is due to the compressibility of the fluid. This valve has been designed to prevent this from happening.
The position switch provides confirmation that the valve is in the non-energized position.
- A coil must be ordered with this cartridge. This cartridge is supplied as a sealed, factory set unit and is not field serviceable. If the assembly requires changes or service it needs to be returned to the factory. Any tampering will violate the product warranty.
- Position switch is CE approved.
- When torquing this cartridge into its cavity, a crow's foot wrench or similar will be required since the position switch precludes the use of a deep socket wrench.
- The solenoid tube assembly is fatigue rated for 5000 psi (350 bar) service.
- This valve is direct actuated and requires no minimum hydraulic pressure for operation.
- This valve is suitable for load holding applications. In the event of power failure, the valve will spring closed.
- On models equipped with the D or L control, the detent mechanism in the manual override is meant for temporary actuation. The D, L and T manual control assembly has a mechanical life expectancy of approximately 7,000 cycles.
- This valve utilizes a wet armature design. This means that the working fluid surrounds the armature and is exposed to the heat generated by the coil. This can be a factor if the coil is energized for long periods of time. Some fluids, notably water/glycol mixtures, break down at these temperatures over time and form varnishes that will affect the function of the cartridge.
- The solenoid's unique magnetic design results in a high efficiency solenoid, yielding high spool actuating force per Watt expended, leading to reliable valve shifting.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 6 gpm23 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 50 ms50 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 drops/min.@5000 psi0,7 cc/min.@350 bar |
| Switching Frequency | 15000 cycles/hr15000 cycles/hr |
| Solenoid Tube Diameter | .75 in.19 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .50 lb0,25 kg |
| Seal kit - Cartridge | Viton: 990-413-006 |
