SUN HYDRAULICS
DTCAZCN924
$786.10 USD
Tags:
- SUN HYDRAULICS
- Material:DTCAZCN924
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

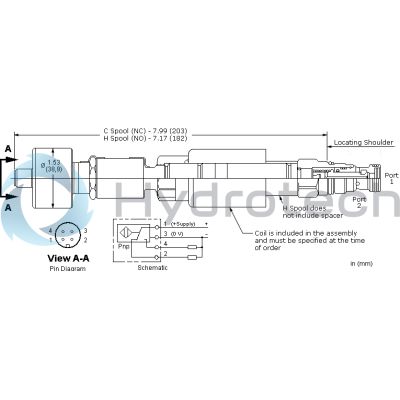

The Sun Hydraulics DTCAZCN924 (Material Number: DTCAZCN924) is a solenoid-operated, 2-way, 2-position cartridge valve featuring a direct-acting, poppet-style design. This valve is engineered to significantly reduce leakage, even under sudden pressure changes, thanks to its unique construction. A notable feature is the position switch which confirms the valve's non-energized state and is CE approved. The valve requires a coil for operation and must be returned to the factory if service or changes are needed, as it is not field serviceable. The solenoid tube assembly is rated for fatigue at 5000 psi (350 bar), making it suitable for load-holding applications. In power failure scenarios, the valve springs closed automatically. The DTCAZCN924 incorporates a wet armature design where working fluid surrounds the armature, potentially affecting fluid integrity over time due to heat exposure from prolonged coil energization. This model features a high-efficiency solenoid that provides substantial spool actuating force per watt expended. It also employs Sun's floating style construction to minimize internal binding risks during installation. Technical specifications include a T-13A cavity, Series 1 classification, with a capacity of 6 gpm (23 L/min). It has an installation torque requirement of 30-35 lbf ft (41-47 Nm) and operates with maximum leakage of 10 drops/min at 5000 psi (0.7 cc/min at 350 bar). The valve can handle switching frequencies up to 15,000 cycles per hour and boasts a response time of approximately 50 milliseconds. Its compact design includes dimensions such as a .75 in (19 mm) solenoid tube diameter and .50 lb (.25 kg) weight.
The Sun Hydraulics DTCAZCN924 (Material Number: DTCAZCN924) is a solenoid-operated, 2-way, 2-position cartridge valve featuring a direct-acting, poppet-style design. This valve is engineered to significantly reduce leakage, even under sudden pressure changes, thanks to its unique construction. A notable feature is the position switch which confirms the valve's non-energized state and is CE approved. The valve requires a coil for operation and must be returned to the factory if service or changes are needed, as it is not field serviceable. The solenoid tube assembly is rated for fatigue at 5000 psi (350 bar), making it suitable for load-holding applications. In power failure scenarios, the valve springs closed automatically. The DTCAZCN924 incorporates a wet armature design where working fluid surrounds the armature, potentially affecting fluid integrity over time due to heat exposure from prolonged coil energization. This model features a high-efficiency solenoid that provides substantial spool actuating force per watt expended. It also employs Sun's floating style construction to minimize internal binding risks during installation. Technical specifications include a T-13A cavity, Series 1 classification, with a capacity of 6 gpm (23 L/min). It has an installation torque requirement of 30-35 lbf ft (41-47 Nm) and operates with maximum leakage of 10 drops/min at 5000 psi (0.7 cc/min at 350 bar). The valve can handle switching frequencies up to 15,000 cycles per hour and boasts a response time of approximately 50 milliseconds. Its compact design includes dimensions such as a .75 in (19 mm) solenoid tube diameter and .50 lb (.25 kg) weight.
This solenoid-operated 2-way, 2-position cartridge is a direct-acting, poppet-style directional valve. Due to the poppet-style construction, this valve has extremely low leakage.
Many poppet style directional valves pass a small amount of fluid when the pressure across them changes suddenly. This is due to the compressibility of the fluid. This valve has been designed to prevent this from happening.
The position switch provides confirmation that the valve is in the non-energized position.
- A coil must be ordered with this cartridge. This cartridge is supplied as a sealed, factory set unit and is not field serviceable. If the assembly requires changes or service it needs to be returned to the factory. Any tampering will violate the product warranty.
- Position switch is CE approved.
- When torquing this cartridge into its cavity, a crow's foot wrench or similar will be required since the position switch precludes the use of a deep socket wrench.
- The solenoid tube assembly is fatigue rated for 5000 psi (350 bar) service.
- This valve is direct actuated and requires no minimum hydraulic pressure for operation.
- This valve is suitable for load holding applications. In the event of power failure, the valve will spring closed.
- On models equipped with the D or L control, the detent mechanism in the manual override is meant for temporary actuation. The D, L and T manual control assembly has a mechanical life expectancy of approximately 7,000 cycles.
- This valve utilizes a wet armature design. This means that the working fluid surrounds the armature and is exposed to the heat generated by the coil. This can be a factor if the coil is energized for long periods of time. Some fluids, notably water/glycol mixtures, break down at these temperatures over time and form varnishes that will affect the function of the cartridge.
- The solenoid's unique magnetic design results in a high efficiency solenoid, yielding high spool actuating force per Watt expended, leading to reliable valve shifting.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 6 gpm23 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 50 ms50 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 drops/min.@5000 psi0,7 cc/min.@350 bar |
| Switching Frequency | 15000 cycles/hr15000 cycles/hr |
| Solenoid Tube Diameter | .75 in.19 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .50 lb0,25 kg |
| Seal kit - Cartridge | Viton: 990-413-006 |
