SUN HYDRAULICS
DTCAZCN624
$777.80 USD
Tags:
- SUN HYDRAULICS
- Material:DTCAZCN624
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

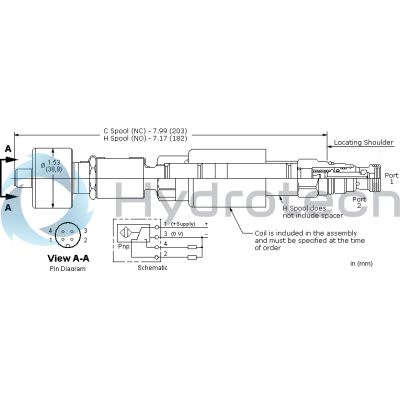

The Sun Hydraulics DTCAZCN624 (DTCAZCN624) is a solenoid-operated, 2-way, 2-position cartridge valve designed for efficient fluid control in hydraulic systems. This direct-acting, poppet-style directional valve features exceptionally low leakage due to its specialized construction, which prevents fluid passage during sudden pressure changes. It includes a position switch that confirms the valve is in the non-energized position and requires a coil ordered separately. The cartridge is factory-sealed and non-serviceable in the field; any required service mandates returning it to the manufacturer. The position switch is CE approved, and installation requires specific tools such as a crow's foot wrench due to design constraints. The DTCAZCN624 operates effectively under high-pressure conditions up to 5000 psi (350 bar) without needing minimum hydraulic pressure for actuation, making it suitable for load-holding applications. In power failure scenarios, the valve automatically springs closed for safety. It incorporates a wet armature design where working fluid surrounds the armature, which can influence performance with certain fluids over extended energization periods. This high-efficiency solenoid provides significant spool actuating force per watt used, enhancing reliable valve shifting. With a capacity of 6 gpm (23 L/min) and typical response time of 50 ms, this valve supports switching frequencies up to 15,000 cycles per hour while maintaining minimal leakage at maximum operating conditions. Its robust construction minimizes internal binding risks due to installation torque or machining variations. The DTCAZCN624 weighs approximately 0.50 lb (0.25 kg) and requires specific installation torque settings of 30\u201335 lbf ft (41\u201347 Nm).
The Sun Hydraulics DTCAZCN624 (DTCAZCN624) is a solenoid-operated, 2-way, 2-position cartridge valve designed for efficient fluid control in hydraulic systems. This direct-acting, poppet-style directional valve features exceptionally low leakage due to its specialized construction, which prevents fluid passage during sudden pressure changes. It includes a position switch that confirms the valve is in the non-energized position and requires a coil ordered separately. The cartridge is factory-sealed and non-serviceable in the field; any required service mandates returning it to the manufacturer. The position switch is CE approved, and installation requires specific tools such as a crow's foot wrench due to design constraints. The DTCAZCN624 operates effectively under high-pressure conditions up to 5000 psi (350 bar) without needing minimum hydraulic pressure for actuation, making it suitable for load-holding applications. In power failure scenarios, the valve automatically springs closed for safety. It incorporates a wet armature design where working fluid surrounds the armature, which can influence performance with certain fluids over extended energization periods. This high-efficiency solenoid provides significant spool actuating force per watt used, enhancing reliable valve shifting. With a capacity of 6 gpm (23 L/min) and typical response time of 50 ms, this valve supports switching frequencies up to 15,000 cycles per hour while maintaining minimal leakage at maximum operating conditions. Its robust construction minimizes internal binding risks due to installation torque or machining variations. The DTCAZCN624 weighs approximately 0.50 lb (0.25 kg) and requires specific installation torque settings of 30\u201335 lbf ft (41\u201347 Nm).
This solenoid-operated 2-way, 2-position cartridge is a direct-acting, poppet-style directional valve. Due to the poppet-style construction, this valve has extremely low leakage.
Many poppet style directional valves pass a small amount of fluid when the pressure across them changes suddenly. This is due to the compressibility of the fluid. This valve has been designed to prevent this from happening.
The position switch provides confirmation that the valve is in the non-energized position.
- A coil must be ordered with this cartridge. This cartridge is supplied as a sealed, factory set unit and is not field serviceable. If the assembly requires changes or service it needs to be returned to the factory. Any tampering will violate the product warranty.
- Position switch is CE approved.
- When torquing this cartridge into its cavity, a crow's foot wrench or similar will be required since the position switch precludes the use of a deep socket wrench.
- The solenoid tube assembly is fatigue rated for 5000 psi (350 bar) service.
- This valve is direct actuated and requires no minimum hydraulic pressure for operation.
- This valve is suitable for load holding applications. In the event of power failure, the valve will spring closed.
- On models equipped with the D or L control, the detent mechanism in the manual override is meant for temporary actuation. The D, L and T manual control assembly has a mechanical life expectancy of approximately 7,000 cycles.
- This valve utilizes a wet armature design. This means that the working fluid surrounds the armature and is exposed to the heat generated by the coil. This can be a factor if the coil is energized for long periods of time. Some fluids, notably water/glycol mixtures, break down at these temperatures over time and form varnishes that will affect the function of the cartridge.
- The solenoid's unique magnetic design results in a high efficiency solenoid, yielding high spool actuating force per Watt expended, leading to reliable valve shifting.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 6 gpm23 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 50 ms50 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 drops/min.@5000 psi0,7 cc/min.@350 bar |
| Switching Frequency | 15000 cycles/hr15000 cycles/hr |
| Solenoid Tube Diameter | .75 in.19 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .50 lb0,25 kg |
| Seal kit - Cartridge | Viton: 990-413-006 |
