SUN HYDRAULICS
DSGSXFN
$314.70 USD
Tags:
- SUN HYDRAULICS
- Material:DSGSXFN
- Model:DSGS-XFN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DSGSXFN (DSGSXFN) is a highside shuttle cartridge designed for full-time regeneration circuits, making it ideal for applications requiring overrunning load control where the load tends to extend the cylinder. This valve operates by connecting the higher pressure work port (either port 2 or 4) to the common port (port 3) while spring-centering to an all-ports-blocked position when both work ports are at equal pressures. Despite its efficient design, it is important to note that this valve does not prevent drift due to spool leakage. Constructed with hardened spool and sleeve materials, it offers excellent wear resistance and minimizes cross-leakage. The valve fits into a T-33A cavity but does not utilize the nose port (port 1). It incorporates Sun's floating style construction, which reduces the risk of internal parts binding caused by excessive installation torque or machining variations in the cavity/cartridge. The DSGSXFN has a capacity of 60 gpm (240 L/min) and can withstand a maximum operating pressure of 5000 psi (350 bar). The valve's maximum leakage rate at 110 SUS (24 cSt) is 4 in\u00b3/min at 1000 psi (65 cc/min at 70 bar). It features a hex size of 1\u00bc inches (31.8 mm) and requires an installation torque between 150 and 160 lbf-ft (203 to 217 Nm). Weighing in at approximately 1.40 lb (0.65 kg), this model comes with an optional Viton seal kit under part number 990033006 for enhanced durability in demanding environments.
The Sun Hydraulics DSGSXFN (DSGSXFN) is a highside shuttle cartridge designed for full-time regeneration circuits, making it ideal for applications requiring overrunning load control where the load tends to extend the cylinder. This valve operates by connecting the higher pressure work port (either port 2 or 4) to the common port (port 3) while spring-centering to an all-ports-blocked position when both work ports are at equal pressures. Despite its efficient design, it is important to note that this valve does not prevent drift due to spool leakage. Constructed with hardened spool and sleeve materials, it offers excellent wear resistance and minimizes cross-leakage. The valve fits into a T-33A cavity but does not utilize the nose port (port 1). It incorporates Sun's floating style construction, which reduces the risk of internal parts binding caused by excessive installation torque or machining variations in the cavity/cartridge. The DSGSXFN has a capacity of 60 gpm (240 L/min) and can withstand a maximum operating pressure of 5000 psi (350 bar). The valve's maximum leakage rate at 110 SUS (24 cSt) is 4 in\u00b3/min at 1000 psi (65 cc/min at 70 bar). It features a hex size of 1\u00bc inches (31.8 mm) and requires an installation torque between 150 and 160 lbf-ft (203 to 217 Nm). Weighing in at approximately 1.40 lb (0.65 kg), this model comes with an optional Viton seal kit under part number 990033006 for enhanced durability in demanding environments.
High-side shuttle cartridges are most often used in full-time regeneration circuits. When both work ports (ports 2 and 4) are at equal pressures the valve is spring-centered to an all-ports-blocked position. When one of the work ports (port 2 or 4) sees a higher pressure it is connected to the common port (port 3).
- This valve provides overrunning load control in regeneration applications where the load tends to extend the cylinder. Because there is spool leakage, it does not prevent drift.
- Hardened spool/sleeve construction provides excellent wear characteristics and minimizes cross leakage.

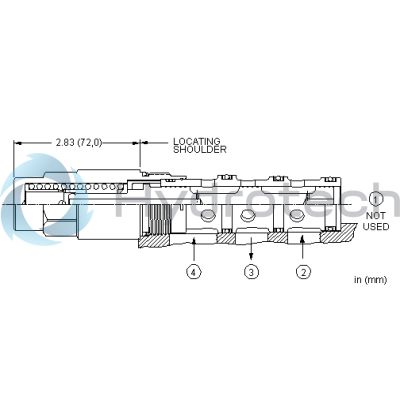

- Although this valve goes into a 4-port cavity, the nose (port 1) is not used.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-33A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 4 in³/min.@1000 psi65 cc/min.@70 bar |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.40 lb0,65 kg |
| Seal kit - Cartridge | Viton: 990-033-006 |
