SUN HYDRAULICS
DRBCKEV
$145.70 USD
Tags:
- SUN HYDRAULICS
- Material:DRBCKEV
- Model:DRBC-KEV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DRBCKEV (DRBCKEV) is a direct-acting, 3-way directional cartridge valve designed for moderate flow circuits. It operates by blocking one port while allowing flow between the other two, typically used to actuate larger pilot-operated directional or logic cartridges. The valve shifts when the pressure differential between port 1 and port 3 exceeds the set threshold. Importantly, pressure at port 3 directly adds to the setting, which might make it unsuitable as a work port in some circuits. If this poses an issue, a four-port version of this valve could be considered. This model features low internal leakage and minimal pilot flow consumption due to its direct-acting design. It is interchangeable with pilot-operated versions, fitting the same cavities and maintaining identical flow paths. Notably, it is not bistable and can modulate between two positions as shown in its configuration. The valve incorporates Sun's floating style construction to reduce the risk of internal parts binding due to excessive installation torque or machining variations. Key specifications include a cavity size of T-11A, series 1 capacity of 7 gpm (28 L/min), and maximum operating pressure of 5000 psi (350 bar). The factory pressure settings are established at 4 gpm (15 L/min), with maximum valve leakage at 2 in\u00b3/min (30 cc/min) under specific conditions. Adjustment involves up to five clockwise turns to increase settings, with specified torque requirements for installation and adjustments. The model weighs approximately .60 lb (.30 kg) and uses Viton seal kits for maintenance.
The Sun Hydraulics DRBCKEV (DRBCKEV) is a direct-acting, 3-way directional cartridge valve designed for moderate flow circuits. It operates by blocking one port while allowing flow between the other two, typically used to actuate larger pilot-operated directional or logic cartridges. The valve shifts when the pressure differential between port 1 and port 3 exceeds the set threshold. Importantly, pressure at port 3 directly adds to the setting, which might make it unsuitable as a work port in some circuits. If this poses an issue, a four-port version of this valve could be considered. This model features low internal leakage and minimal pilot flow consumption due to its direct-acting design. It is interchangeable with pilot-operated versions, fitting the same cavities and maintaining identical flow paths. Notably, it is not bistable and can modulate between two positions as shown in its configuration. The valve incorporates Sun's floating style construction to reduce the risk of internal parts binding due to excessive installation torque or machining variations. Key specifications include a cavity size of T-11A, series 1 capacity of 7 gpm (28 L/min), and maximum operating pressure of 5000 psi (350 bar). The factory pressure settings are established at 4 gpm (15 L/min), with maximum valve leakage at 2 in\u00b3/min (30 cc/min) under specific conditions. Adjustment involves up to five clockwise turns to increase settings, with specified torque requirements for installation and adjustments. The model weighs approximately .60 lb (.30 kg) and uses Viton seal kits for maintenance.
Direct-acting, 3-way directional cartridges (1 blocked, 2 to 3 open) are switching devices typically used in moderate flow circuits. They can be used by themselves or to actuate larger pilot-operated directional cartridges or logic cartridges. The valve shifts when the pressure differential between port 1 and port 3 exceeds the setting.
- Pressure at port 3 is directly additive to the setting of the valve. Because of this, port 3 may not be useable as a work port in your circuit. If this is a consideration, the 4 port version of this valve may be a solution.
- Because of their direct-acting design, these cartridges feature low internal leakage and low pilot flow consumption.
- Direct-acting and pilot-operated versions of these valves are interchangeable. They fit the same cavities and have the same flow paths.
- This valve is not bistable; it is capable of modulating between the two positions shown.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

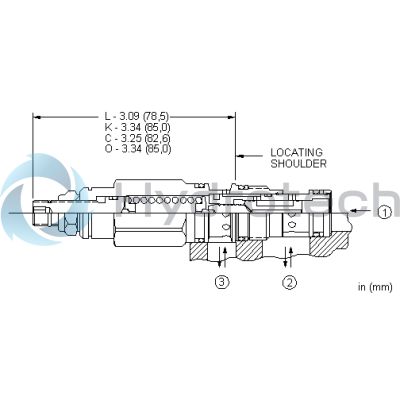

| Cavity | T-11A |
| Series | 1 |
| Capacity | 7 gpm28 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.30 cc/min. |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .60 lb0,30 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
