SUN HYDRAULICS
DRBCCDN
$131.70 USD
Tags:
- SUN HYDRAULICS
- Material:DRBCCDN
- Model:DRBC-CDN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

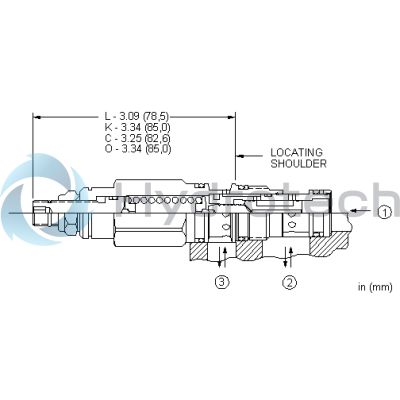

The Sun Hydraulics DRBCCDN (Material Number: DRBCCDN) is a direct-acting, 3-way directional cartridge valve designed for moderate flow circuits. It functions as a switching device with one port blocked and allows flow from port 2 to port 3. This valve is suitable for standalone applications or can be used to actuate larger pilot-operated directional cartridges or logic cartridges. The valve shifts when the pressure differential between port 1 and port 3 exceeds its set threshold, with pressure at port 3 directly adding to the valve's setting, which may limit its use as a work port in certain circuits. This model features low internal leakage and pilot flow consumption due to its direct-acting design. It is interchangeable with pilot-operated versions, sharing the same cavities and flow paths. The DRBCCDN is not bistable; it can modulate between two positions. It incorporates Sun's floating style construction, reducing the risk of internal parts binding from excessive torque or machining variations. The DRBCCDN fits into a T-11A cavity and belongs to Series 1 with a capacity of 7 gpm (28 L/min). Factory pressure settings are established at 4 gpm (15 L/min), with a maximum operating pressure of 5000 psi (350 bar). Maximum valve leakage at 110 SUS (24 cSt) is rated at 2 in\u00b3/min (30 cc/min). The adjustment requires approximately five clockwise turns to increase the setting, and installation torque ranges from 30-35 lbf ft (41-47 Nm). The valve hex size is .78 in. (22.2 mm), while the adjustment screw internal hex size measures .532 in. (4 mm). The locknut hex size is .916 in. (15 mm) with a torque of 80-90 lbf in. (9-10 Nm). The model weighs approximately .60 lb (.30 kg) and uses Viton seal kits for maintenance needs.
The Sun Hydraulics DRBCCDN (Material Number: DRBCCDN) is a direct-acting, 3-way directional cartridge valve designed for moderate flow circuits. It functions as a switching device with one port blocked and allows flow from port 2 to port 3. This valve is suitable for standalone applications or can be used to actuate larger pilot-operated directional cartridges or logic cartridges. The valve shifts when the pressure differential between port 1 and port 3 exceeds its set threshold, with pressure at port 3 directly adding to the valve's setting, which may limit its use as a work port in certain circuits. This model features low internal leakage and pilot flow consumption due to its direct-acting design. It is interchangeable with pilot-operated versions, sharing the same cavities and flow paths. The DRBCCDN is not bistable; it can modulate between two positions. It incorporates Sun's floating style construction, reducing the risk of internal parts binding from excessive torque or machining variations. The DRBCCDN fits into a T-11A cavity and belongs to Series 1 with a capacity of 7 gpm (28 L/min). Factory pressure settings are established at 4 gpm (15 L/min), with a maximum operating pressure of 5000 psi (350 bar). Maximum valve leakage at 110 SUS (24 cSt) is rated at 2 in\u00b3/min (30 cc/min). The adjustment requires approximately five clockwise turns to increase the setting, and installation torque ranges from 30-35 lbf ft (41-47 Nm). The valve hex size is .78 in. (22.2 mm), while the adjustment screw internal hex size measures .532 in. (4 mm). The locknut hex size is .916 in. (15 mm) with a torque of 80-90 lbf in. (9-10 Nm). The model weighs approximately .60 lb (.30 kg) and uses Viton seal kits for maintenance needs.
Direct-acting, 3-way directional cartridges (1 blocked, 2 to 3 open) are switching devices typically used in moderate flow circuits. They can be used by themselves or to actuate larger pilot-operated directional cartridges or logic cartridges. The valve shifts when the pressure differential between port 1 and port 3 exceeds the setting.
- Pressure at port 3 is directly additive to the setting of the valve. Because of this, port 3 may not be useable as a work port in your circuit. If this is a consideration, the 4 port version of this valve may be a solution.
- Because of their direct-acting design, these cartridges feature low internal leakage and low pilot flow consumption.
- Direct-acting and pilot-operated versions of these valves are interchangeable. They fit the same cavities and have the same flow paths.
- This valve is not bistable; it is capable of modulating between the two positions shown.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 7 gpm28 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.30 cc/min. |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .60 lb0,30 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
