SUN HYDRAULICS
DNDYMXV212N
$280.60 USD
Tags:
- SUN HYDRAULICS
- Material:DNDYMXV212N
- Model:DNDY-MXV@212N
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DNDYMXV212N (DNDYMXV212N) is a solenoid-operated, 6-way, 2-position cartridge valve designed for direct-acting applications with a balanced spool configuration. Typically utilized for selecting between two distinct circuits, this valve connects P and T to the first circuit in its de-energized state and switches to the second circuit when energized. It features a fatigue-rated solenoid tube assembly capable of handling up to 5000 psi (350 bar) service pressure, ensuring robust performance in demanding environments. This valve operates directly without requiring minimum hydraulic pressure, making it versatile across various applications. The DNDYMXV212N offers multiple manual override options, including configurations without manual override. However, note that manual override functionality is incompatible with weatherized coils. The wet armature design allows the working fluid to surround the armature, which may influence performance if the coil remains energized for extended periods due to potential fluid breakdown at high temperatures. This model boasts high efficiency through its unique magnetic solenoid design, maximizing spool actuation force per watt expended and ensuring reliable valve shifting. It supports a wide range of coil termination and voltage configurations with optional surge protection. Interchangeable coils with other Sun Series 1 solenoid products enhance flexibility in installation. The cartridge's floating style construction minimizes internal part binding risks due to excessive installation torque or machining variations. With a capacity of 5 gpm (20 L/min), response time of approximately 50 ms, and maximum leakage at 110 SUS (24 cSt) limited to 5 in/min at 3000 psi (80 cc/min at 210 bar), this valve is engineered for efficiency and durability. Additional specifications include a switching frequency of up to 15,000 cycles per hour and a mechanical life expectancy of approximately 7,000 cycles for models equipped with D or L controls.
The Sun Hydraulics DNDYMXV212N (DNDYMXV212N) is a solenoid-operated, 6-way, 2-position cartridge valve designed for direct-acting applications with a balanced spool configuration. Typically utilized for selecting between two distinct circuits, this valve connects P and T to the first circuit in its de-energized state and switches to the second circuit when energized. It features a fatigue-rated solenoid tube assembly capable of handling up to 5000 psi (350 bar) service pressure, ensuring robust performance in demanding environments. This valve operates directly without requiring minimum hydraulic pressure, making it versatile across various applications. The DNDYMXV212N offers multiple manual override options, including configurations without manual override. However, note that manual override functionality is incompatible with weatherized coils. The wet armature design allows the working fluid to surround the armature, which may influence performance if the coil remains energized for extended periods due to potential fluid breakdown at high temperatures. This model boasts high efficiency through its unique magnetic solenoid design, maximizing spool actuation force per watt expended and ensuring reliable valve shifting. It supports a wide range of coil termination and voltage configurations with optional surge protection. Interchangeable coils with other Sun Series 1 solenoid products enhance flexibility in installation. The cartridge's floating style construction minimizes internal part binding risks due to excessive installation torque or machining variations. With a capacity of 5 gpm (20 L/min), response time of approximately 50 ms, and maximum leakage at 110 SUS (24 cSt) limited to 5 in/min at 3000 psi (80 cc/min at 210 bar), this valve is engineered for efficiency and durability. Additional specifications include a switching frequency of up to 15,000 cycles per hour and a mechanical life expectancy of approximately 7,000 cycles for models equipped with D or L controls.
This solenoid-operated 6-way, 2-position cartridge is a direct-acting, balanced spool valve. The typical use for this valve is to select between two separate circuits. The de-energized condition connects P and T to the first circuit and when energized connects P and T to the second circuit.
- The solenoid tube assembly is fatigue rated for 5000 psi (350 bar) service.
- This valve is direct actuated and requires no minimum hydraulic pressure for operation.
- On models equipped with the D or L control, the detent mechanism in the manual override is meant for temporary actuation. The D, L and T manual control assembly has a mechanical life expectancy of approximately 7,000 cycles.
- This cartridge has several manual override choices, including no manual override. See the CONFIGURATION section. Please note: Manual override functionality is not compatible with weatherized coils.
- This valve utilizes a wet armature design. This means that the working fluid surrounds the armature and is exposed to the heat generated by the coil. This can be a factor if the coil is energized for long periods of time. Some fluids, notably water/glycol mixtures, break down at these temperatures over time and form varnishes that will affect the function of the cartridge.
- A wide variety of coil termination and voltage options are available, with and without surge protection. See the CONFIGURATION section.
- The solenoid's unique magnetic design results in a high efficiency solenoid, yielding high spool actuating force per Watt expended, leading to reliable valve shifting.
- Coils are interchangeable with other Sun Series 1 solenoid products and can be mounted on the tube in either direction.
- Coil connector options offer ratings up to IP69K. See individual coil product pages for details. Additional weatherized coils and kits are available for more complete environmental protection.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-61A |
| Series | 1 |
| Capacity | 5 gpm20 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 50 ms50 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 in³/min.@3000 psi80 cc/min.@210 bar |
| Switching Frequency | 15000 cycles/hr15000 cycles/hr |
| Manual Override Force Requirement | 5 lbs/1000 psi @ Port 133 N/100 bar @ Port 1 |
| Manual Override Stroke | .10 in.2,5 mm |

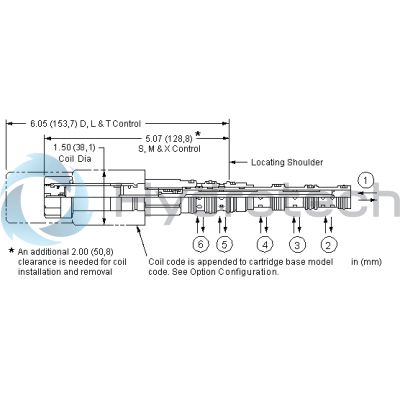

| Solenoid Tube Diameter | .75 in.19 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .60 lb0,30 kg |
| Seal kit - Cartridge | Viton: 990-461-006 |
| Seal and nut kit - Coil | Viton: 990-770-006Viton: 990-770-006 |
