SUN HYDRAULICS
DNDYLXV848
$320.80 USD
Tags:
- SUN HYDRAULICS
- Material:DNDYLXV848
- Model:DNDY-LXV@848
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DNDYLXV848 (Material Number: DNDYLXV848) is a solenoid-operated 6-way, 2-position cartridge valve designed for efficient hydraulic circuit selection. This direct-acting, balanced spool valve can switch between two separate circuits, with the de-energized state connecting P and T to the first circuit and the energized state connecting P and T to the second. The valve's solenoid tube assembly is fatigue-rated for service up to 5000 psi (350 bar), ensuring durability and reliability in demanding applications. Notably, this valve requires no minimum hydraulic pressure for operation, making it versatile for various systems. The DNDYLXV848 model incorporates a wet armature design, which allows the working fluid to surround the armature. This design enhances heat dissipation from the coil but may affect function if fluids like water-glycol mixtures degrade over time due to heat exposure. The valve offers multiple manual override options; however, it's important to note that manual override functionality is not compatible with weatherized coils. With a response time of approximately 50 milliseconds and a switching frequency of up to 15,000 cycles per hour, this valve ensures rapid and efficient operation. It features Sun's floating style construction to minimize internal part binding due to installation torque or machining variations. The cartridge has a capacity of 5 gpm (20 L/min) and exhibits minimal leakage at specified conditions. The solenoid's unique magnetic design provides high efficiency with significant spool actuating force per watt expended. Coils are interchangeable with other Sun Series 1 solenoid products and offer various termination options with ratings up to IP69K for enhanced environmental protection. This model weighs .60 lb (.30 kg) and requires an installation torque of 30-35 lbf ft (41-47 Nm).
The Sun Hydraulics DNDYLXV848 (Material Number: DNDYLXV848) is a solenoid-operated 6-way, 2-position cartridge valve designed for efficient hydraulic circuit selection. This direct-acting, balanced spool valve can switch between two separate circuits, with the de-energized state connecting P and T to the first circuit and the energized state connecting P and T to the second. The valve's solenoid tube assembly is fatigue-rated for service up to 5000 psi (350 bar), ensuring durability and reliability in demanding applications. Notably, this valve requires no minimum hydraulic pressure for operation, making it versatile for various systems. The DNDYLXV848 model incorporates a wet armature design, which allows the working fluid to surround the armature. This design enhances heat dissipation from the coil but may affect function if fluids like water-glycol mixtures degrade over time due to heat exposure. The valve offers multiple manual override options; however, it's important to note that manual override functionality is not compatible with weatherized coils. With a response time of approximately 50 milliseconds and a switching frequency of up to 15,000 cycles per hour, this valve ensures rapid and efficient operation. It features Sun's floating style construction to minimize internal part binding due to installation torque or machining variations. The cartridge has a capacity of 5 gpm (20 L/min) and exhibits minimal leakage at specified conditions. The solenoid's unique magnetic design provides high efficiency with significant spool actuating force per watt expended. Coils are interchangeable with other Sun Series 1 solenoid products and offer various termination options with ratings up to IP69K for enhanced environmental protection. This model weighs .60 lb (.30 kg) and requires an installation torque of 30-35 lbf ft (41-47 Nm).

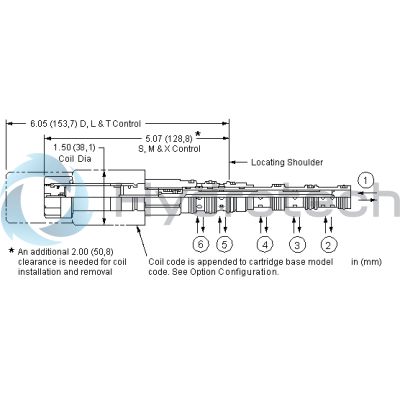

This solenoid-operated 6-way, 2-position cartridge is a direct-acting, balanced spool valve. The typical use for this valve is to select between two separate circuits. The de-energized condition connects P and T to the first circuit and when energized connects P and T to the second circuit.
- The solenoid tube assembly is fatigue rated for 5000 psi (350 bar) service.
- This valve is direct actuated and requires no minimum hydraulic pressure for operation.
- On models equipped with the D or L control, the detent mechanism in the manual override is meant for temporary actuation. The D, L and T manual control assembly has a mechanical life expectancy of approximately 7,000 cycles.
- This cartridge has several manual override choices, including no manual override. See the CONFIGURATION section. Please note: Manual override functionality is not compatible with weatherized coils.
- This valve utilizes a wet armature design. This means that the working fluid surrounds the armature and is exposed to the heat generated by the coil. This can be a factor if the coil is energized for long periods of time. Some fluids, notably water/glycol mixtures, break down at these temperatures over time and form varnishes that will affect the function of the cartridge.
- A wide variety of coil termination and voltage options are available, with and without surge protection. See the CONFIGURATION section.
- The solenoid's unique magnetic design results in a high efficiency solenoid, yielding high spool actuating force per Watt expended, leading to reliable valve shifting.
- Coils are interchangeable with other Sun Series 1 solenoid products and can be mounted on the tube in either direction.
- Coil connector options offer ratings up to IP69K. See individual coil product pages for details. Additional weatherized coils and kits are available for more complete environmental protection.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-61A |
| Series | 1 |
| Capacity | 5 gpm20 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 50 ms50 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 in³/min.@3000 psi80 cc/min.@210 bar |
| Switching Frequency | 15000 cycles/hr15000 cycles/hr |
| Manual Override Force Requirement | 5 lbs/1000 psi @ Port 133 N/100 bar @ Port 1 |
| Manual Override Stroke | .10 in.2,5 mm |
| Solenoid Tube Diameter | .75 in.19 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .60 lb0,30 kg |
| Seal kit - Cartridge | Viton: 990-461-006 |
| Seal and nut kit - Coil | Viton: 990-770-006Viton: 990-770-006 |
