SUN HYDRAULICS
DNDYDXV912
$318.90 USD
Tags:
- SUN HYDRAULICS
- Material:DNDYDXV912
- Model:DNDY-DXV@912
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DNDYDXV912 (DNDYDXV912) is a solenoid-operated 6-way, 2-position cartridge valve that excels in selecting between two separate circuits. In its de-energized state, it connects P and T to the first circuit, while energizing the solenoid redirects P and T to the second circuit. Designed for durability, the solenoid tube assembly is rated for 5000 psi (350 bar) service, with no minimum hydraulic pressure required for operation. The valve features a direct actuation mechanism and offers various manual override options, including a detent mechanism for temporary actuation on models equipped with D or L control. The mechanical life expectancy of these controls is approximately 7,000 cycles. The valve employs a wet armature design, which allows working fluid to surround the armature and be exposed to coil-generated heat\u2014a crucial factor when coils are energized for extended periods. This design necessitates caution with certain fluids like water-glycol mixtures that may degrade at high temperatures over time. A variety of coil termination and voltage options are available, enhancing adaptability with or without surge protection. The solenoid's magnetic design ensures high efficiency by maximizing spool actuating force per watt expended, promoting reliable valve shifting. Coils are interchangeable with other Sun Series 1 solenoid products and can be mounted in either direction on the tube. For environmental protection, coil connector options offer ratings up to IP69K. The valve incorporates Sun's floating style construction to minimize internal part binding due to excessive installation torque or machining variations in the cavity/cartridge. With a cavity size of T-61A and a capacity of 5 gpm (20 L/min), this cartridge valve supports maximum operating pressures up to 5000 psi (350 bar), ensuring robust performance across demanding applications.
The Sun Hydraulics DNDYDXV912 (DNDYDXV912) is a solenoid-operated 6-way, 2-position cartridge valve that excels in selecting between two separate circuits. In its de-energized state, it connects P and T to the first circuit, while energizing the solenoid redirects P and T to the second circuit. Designed for durability, the solenoid tube assembly is rated for 5000 psi (350 bar) service, with no minimum hydraulic pressure required for operation. The valve features a direct actuation mechanism and offers various manual override options, including a detent mechanism for temporary actuation on models equipped with D or L control. The mechanical life expectancy of these controls is approximately 7,000 cycles. The valve employs a wet armature design, which allows working fluid to surround the armature and be exposed to coil-generated heat\u2014a crucial factor when coils are energized for extended periods. This design necessitates caution with certain fluids like water-glycol mixtures that may degrade at high temperatures over time. A variety of coil termination and voltage options are available, enhancing adaptability with or without surge protection. The solenoid's magnetic design ensures high efficiency by maximizing spool actuating force per watt expended, promoting reliable valve shifting. Coils are interchangeable with other Sun Series 1 solenoid products and can be mounted in either direction on the tube. For environmental protection, coil connector options offer ratings up to IP69K. The valve incorporates Sun's floating style construction to minimize internal part binding due to excessive installation torque or machining variations in the cavity/cartridge. With a cavity size of T-61A and a capacity of 5 gpm (20 L/min), this cartridge valve supports maximum operating pressures up to 5000 psi (350 bar), ensuring robust performance across demanding applications.

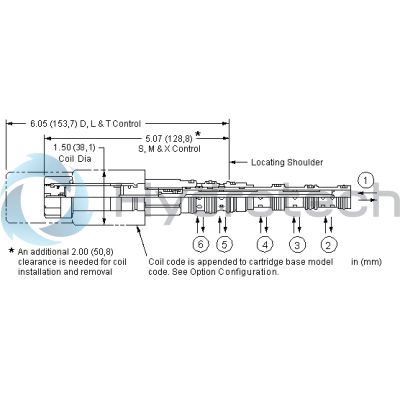

This solenoid-operated 6-way, 2-position cartridge is a direct-acting, balanced spool valve. The typical use for this valve is to select between two separate circuits. The de-energized condition connects P and T to the first circuit and when energized connects P and T to the second circuit.
- The solenoid tube assembly is fatigue rated for 5000 psi (350 bar) service.
- This valve is direct actuated and requires no minimum hydraulic pressure for operation.
- On models equipped with the D or L control, the detent mechanism in the manual override is meant for temporary actuation. The D, L and T manual control assembly has a mechanical life expectancy of approximately 7,000 cycles.
- This cartridge has several manual override choices, including no manual override. See the CONFIGURATION section. Please note: Manual override functionality is not compatible with weatherized coils.
- This valve utilizes a wet armature design. This means that the working fluid surrounds the armature and is exposed to the heat generated by the coil. This can be a factor if the coil is energized for long periods of time. Some fluids, notably water/glycol mixtures, break down at these temperatures over time and form varnishes that will affect the function of the cartridge.
- A wide variety of coil termination and voltage options are available, with and without surge protection. See the CONFIGURATION section.
- The solenoid's unique magnetic design results in a high efficiency solenoid, yielding high spool actuating force per Watt expended, leading to reliable valve shifting.
- Coils are interchangeable with other Sun Series 1 solenoid products and can be mounted on the tube in either direction.
- Coil connector options offer ratings up to IP69K. See individual coil product pages for details. Additional weatherized coils and kits are available for more complete environmental protection.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-61A |
| Series | 1 |
| Capacity | 5 gpm20 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 50 ms50 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 in³/min.@3000 psi80 cc/min.@210 bar |
| Switching Frequency | 15000 cycles/hr15000 cycles/hr |
| Manual Override Force Requirement | 5 lbs/1000 psi @ Port 133 N/100 bar @ Port 1 |
| Manual Override Stroke | .10 in.2,5 mm |
| Solenoid Tube Diameter | .75 in.19 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .60 lb0,30 kg |
| Seal kit - Cartridge | Viton: 990-461-006 |
| Seal and nut kit - Coil | Viton: 990-770-006Viton: 990-770-006 |
