SUN HYDRAULICS
DCFAXBN
$798.60 USD
Tags:
- SUN HYDRAULICS
- Material:DCFAXBN
- Model:DCFA-XBN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCFAXBN (DCFAXBN) is a versatile three-position, 4-way directional cartridge valve, engineered for high-performance hydraulic systems. This valve features a spring-centered design and offers a selection of 10 different spool options to cater to various application needs. Each spool type influences the valve's capacity, which ranges from 50 to 200 gpm (200 to 760 L/min), ensuring adaptability for different flow requirements. Constructed with a hardened spool and sleeve, the DCFAXBN ensures low leakage rates and superior wear characteristics, enhancing the longevity and reliability of the system. It operates at a maximum pressure of 5000 psi (350 bar) across all ports, including the x and y pilot ports (port 5 and port 6). The minimal pilot pressure required to shift the valve is relatively low at 125 psi (9 bar), making it efficient in terms of energy consumption. Sun Hydraulics has incorporated their floating style construction into this model. This design minimizes internal parts binding that might occur due to excessive installation torque or variations in cavity/cartridge machining, promoting consistent performance even under challenging installation conditions. The DCFAXBN has a maximum leakage rate specified at 2 in\u00b3/min per 1000 psi (30 cc/min per 70 bar), ensuring tight control over fluid loss. Additional specifications include a pilot volume displacement of .42 in\u00b3 (6.9 cc), a hex size for the valve at 1-5/8 inches (41.3 mm), and an installation torque range between 350 - 375 lbf\u00b7ft (474 - 508 Nm). The unit weighs approximately 3.80 lbs (1.75 kg) and utilizes Viton seals for enhanced chemical resistance and durability under varying temperatures.
The Sun Hydraulics DCFAXBN (DCFAXBN) is a versatile three-position, 4-way directional cartridge valve, engineered for high-performance hydraulic systems. This valve features a spring-centered design and offers a selection of 10 different spool options to cater to various application needs. Each spool type influences the valve's capacity, which ranges from 50 to 200 gpm (200 to 760 L/min), ensuring adaptability for different flow requirements. Constructed with a hardened spool and sleeve, the DCFAXBN ensures low leakage rates and superior wear characteristics, enhancing the longevity and reliability of the system. It operates at a maximum pressure of 5000 psi (350 bar) across all ports, including the x and y pilot ports (port 5 and port 6). The minimal pilot pressure required to shift the valve is relatively low at 125 psi (9 bar), making it efficient in terms of energy consumption. Sun Hydraulics has incorporated their floating style construction into this model. This design minimizes internal parts binding that might occur due to excessive installation torque or variations in cavity/cartridge machining, promoting consistent performance even under challenging installation conditions. The DCFAXBN has a maximum leakage rate specified at 2 in\u00b3/min per 1000 psi (30 cc/min per 70 bar), ensuring tight control over fluid loss. Additional specifications include a pilot volume displacement of .42 in\u00b3 (6.9 cc), a hex size for the valve at 1-5/8 inches (41.3 mm), and an installation torque range between 350 - 375 lbf\u00b7ft (474 - 508 Nm). The unit weighs approximately 3.80 lbs (1.75 kg) and utilizes Viton seals for enhanced chemical resistance and durability under varying temperatures.
Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of 10 different spool options. The supply port is port 1 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-64A |
| Series | 4 |
| Capacity | 50 - 200 gpm200 - 760 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 125 psi9 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .42 in³6,9 cc |

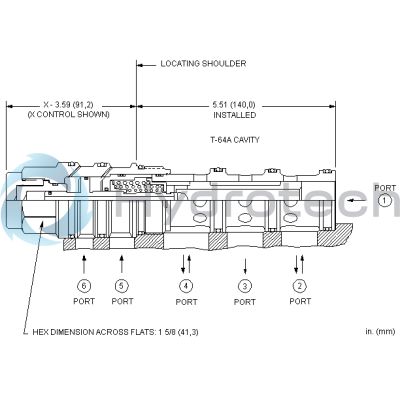

| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 3.80 lb1,75 kg |
| Seal kit - Cartridge | Viton: 990-064-006 |
