SUN HYDRAULICS
DCEADCV
$429.80 USD
Tags:
- SUN HYDRAULICS
- Material:DCEADCV
- Model:DCEA-DCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCEADCV (DCEADCV) is a versatile and robust hydraulic control valve, ideal for a wide range of fluid power applications. This three-position, 4-way directional cartridge valve is spring-centered and features six ports, all capable of handling pressures up to 5000 psi (350 bar). The DCEADCV can be customized with one of ten different spool options, allowing it to meet specific system requirements effectively. Engineered for high performance, the valve offers capacities ranging from 25 to 100 gpm (95 to 380 L/min), depending on the spool type selected. It requires a minimum pilot pressure of 125 psi (9 bar) to shift the valve, ensuring reliable operation under varying conditions. The maximum operating pressure for this model is also rated at 5000 psi (350 bar), and it exhibits a maximum valve leakage of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), demonstrating its efficiency and effectiveness in maintaining system integrity. Notably, the DCEADCV incorporates Sun Hydraulics' floating style construction which minimizes internal parts binding \u2014 a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This design feature enhances the overall durability and reliability of the valve. Additionally, the hardened spool and sleeve are engineered to provide low leakage rates and superior wear characteristics, further extending the valve's service life. The physical specifications include a hex size of 1.25 inches (31.8 mm) and an installation torque range of 150-160 lbf-ft (203-217 Nm). The model weighs approximately 1.80 lbs (0.80 kg), making it compact yet sturdy for industrial applications. Overall, the Sun Hydraulics DCEADCV offers a high-performance solution for complex hydraulic systems requiring precise control and long-term reliability.
The Sun Hydraulics DCEADCV (DCEADCV) is a versatile and robust hydraulic control valve, ideal for a wide range of fluid power applications. This three-position, 4-way directional cartridge valve is spring-centered and features six ports, all capable of handling pressures up to 5000 psi (350 bar). The DCEADCV can be customized with one of ten different spool options, allowing it to meet specific system requirements effectively. Engineered for high performance, the valve offers capacities ranging from 25 to 100 gpm (95 to 380 L/min), depending on the spool type selected. It requires a minimum pilot pressure of 125 psi (9 bar) to shift the valve, ensuring reliable operation under varying conditions. The maximum operating pressure for this model is also rated at 5000 psi (350 bar), and it exhibits a maximum valve leakage of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar), demonstrating its efficiency and effectiveness in maintaining system integrity. Notably, the DCEADCV incorporates Sun Hydraulics' floating style construction which minimizes internal parts binding \u2014 a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This design feature enhances the overall durability and reliability of the valve. Additionally, the hardened spool and sleeve are engineered to provide low leakage rates and superior wear characteristics, further extending the valve's service life. The physical specifications include a hex size of 1.25 inches (31.8 mm) and an installation torque range of 150-160 lbf-ft (203-217 Nm). The model weighs approximately 1.80 lbs (0.80 kg), making it compact yet sturdy for industrial applications. Overall, the Sun Hydraulics DCEADCV offers a high-performance solution for complex hydraulic systems requiring precise control and long-term reliability.

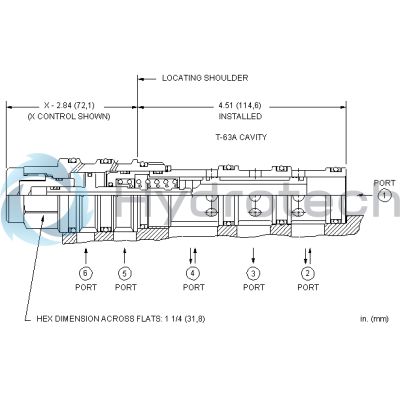

Three-position, 4-way directional cartridges are spring-centered, 6-port directional valves that can be configured from a choice of 10 different spool options. The supply port is port 1 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- Leakage listed in technical data is for each path.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-63A |
| Series | 3 |
| Capacity | 25 - 100 gpm95 - 380 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 125 psi9 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .17 in³2,8 cc |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.80 lb0,80 kg |
| Seal kit - Cartridge | Viton: 990-063-006 |
