SUN HYDRAULICS
DCCFXCV
$173.00 USD
Tags:
- SUN HYDRAULICS
- Material:DCCFXCV
- Model:DCCF-XCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DCCFXCV (DCCFXCV) is a versatile and robust hydraulic valve, ideal for a range of applications requiring reliable fluid control. This two-position, 4-way directional cartridge valve is spring-offset and features six ports, including pilot ports (port 5 and port 6) which are positively sealed from the work ports. Each port can handle up to 5000 psi (350 bar), making it suitable for high-pressure systems. The DCCFXCV offers a choice of nine different spool options, allowing users to select the configuration that best meets their specific requirements. The spool type chosen directly affects the valve\u2019s capacity, which ranges from 7 to 10 gpm (28 to 40 L/min), due to variations in flow forces caused by different spool configurations. These flow forces are proportional to flow and pressure drop across the valve and can impact the valve's shifting if they exceed the centering spring force. Constructed with a hardened spool and sleeve, the DCCFXCV ensures low leakage rates and excellent wear characteristics, maintaining consistent performance over time. It also incorporates Sun\u2019s floating style construction which minimizes internal parts binding that could result from excessive installation torque or cavity/cartridge machining variations. This model requires a minimum pilot pressure of 175 psi (12 bar) to shift the valve and can handle a maximum leakage of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). The valve has a hex size of 7/8 in. (22.2 mm) and should be installed with a torque between 30 - 35 lbf ft (41 - 47 Nm). Weighing just .45 lb (0.20 kg), it is compact yet durable enough for demanding environments. The recommended seal kit for this cartridge is Viton: 990061006.
The Sun Hydraulics DCCFXCV (DCCFXCV) is a versatile and robust hydraulic valve, ideal for a range of applications requiring reliable fluid control. This two-position, 4-way directional cartridge valve is spring-offset and features six ports, including pilot ports (port 5 and port 6) which are positively sealed from the work ports. Each port can handle up to 5000 psi (350 bar), making it suitable for high-pressure systems. The DCCFXCV offers a choice of nine different spool options, allowing users to select the configuration that best meets their specific requirements. The spool type chosen directly affects the valve\u2019s capacity, which ranges from 7 to 10 gpm (28 to 40 L/min), due to variations in flow forces caused by different spool configurations. These flow forces are proportional to flow and pressure drop across the valve and can impact the valve's shifting if they exceed the centering spring force. Constructed with a hardened spool and sleeve, the DCCFXCV ensures low leakage rates and excellent wear characteristics, maintaining consistent performance over time. It also incorporates Sun\u2019s floating style construction which minimizes internal parts binding that could result from excessive installation torque or cavity/cartridge machining variations. This model requires a minimum pilot pressure of 175 psi (12 bar) to shift the valve and can handle a maximum leakage of 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). The valve has a hex size of 7/8 in. (22.2 mm) and should be installed with a torque between 30 - 35 lbf ft (41 - 47 Nm). Weighing just .45 lb (0.20 kg), it is compact yet durable enough for demanding environments. The recommended seal kit for this cartridge is Viton: 990061006.

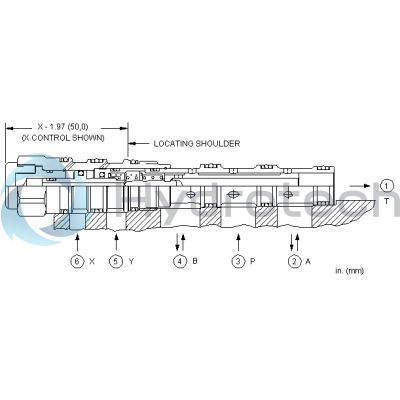

Two-position, 4-way directional cartridges are spring-offset, 6-port directional valves that can be configured from a choice of 9 different spool options. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- All ports will accept 5000 psi (350 bar), including the x and y pilot ports (port 5 and port 6).
- The reason for the different capacities, or performance limits, for the different spool configurations are flow forces. Flow forces are proportional to flow and pressure drop. Typically, they resist the opening of a passage. Spool configurations that open passages as they spring center are the most susceptible. If the flow forces due to the flow and pressure conditions exceed the centering spring force the valve may not shift completely. Higher flows may be used at lower pressures.
- Leakage listed in technical data is for each path.
- The pilot ports, 5 and 6, are positively sealed from the work ports.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-61A |
| Series | 1 |
| Capacity | 7 - 10 gpm28 - 40 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 175 psi12 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .02 in³0,33 cc |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .45 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-061-006 |
