SUN HYDRAULICS
CXIEXBN
$196.60 USD
Tags:
- SUN HYDRAULICS
- Material:CXIEXBN
- Model:CXIE-XBN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXIEXBN (CXIEXBN) is a high-performance, corrosion-resistant cartridge valve designed for specialized hydraulic applications. This model operates as a free-flow, side-to-nose cheater check valve within a 3-port cavity framework, with port 3 of the cartridge effectively blocked off. It functions as a standard 2-port check valve in this configuration, making it an ideal solution for circuits requiring a check valve in an existing three-port cavity. The CXIEXBN model boasts an impressive maximum operating pressure of 5000 psi (350 bar) at ports 1 and 2 and can handle flow capacities up to 120 gpm (480 L/min). It features extremely low leakage rates, with maximum leakage less than one drop per minute (0.07 cc/min), ensuring efficient and reliable operation. The valve is built using Sun's floating style construction which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. Designed to be durable and robust, the CXIEXBN has dimensions with a hex size of 1-5/8 inches (41.3 mm) and requires an installation torque between 350 \u2013 375 lbf ft (474 \u2013 508 Nm). Its total weight is approximately 1.90 lbs (0.85 kg). The model also includes a Viton seal kit for enhanced performance under various conditions. This specific model code does not include the suffix AP or LH, which are used to indicate models intended specifically for highly corrosive environments.
The Sun Hydraulics CXIEXBN (CXIEXBN) is a high-performance, corrosion-resistant cartridge valve designed for specialized hydraulic applications. This model operates as a free-flow, side-to-nose cheater check valve within a 3-port cavity framework, with port 3 of the cartridge effectively blocked off. It functions as a standard 2-port check valve in this configuration, making it an ideal solution for circuits requiring a check valve in an existing three-port cavity. The CXIEXBN model boasts an impressive maximum operating pressure of 5000 psi (350 bar) at ports 1 and 2 and can handle flow capacities up to 120 gpm (480 L/min). It features extremely low leakage rates, with maximum leakage less than one drop per minute (0.07 cc/min), ensuring efficient and reliable operation. The valve is built using Sun's floating style construction which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. Designed to be durable and robust, the CXIEXBN has dimensions with a hex size of 1-5/8 inches (41.3 mm) and requires an installation torque between 350 \u2013 375 lbf ft (474 \u2013 508 Nm). Its total weight is approximately 1.90 lbs (0.85 kg). The model also includes a Viton seal kit for enhanced performance under various conditions. This specific model code does not include the suffix AP or LH, which are used to indicate models intended specifically for highly corrosive environments.

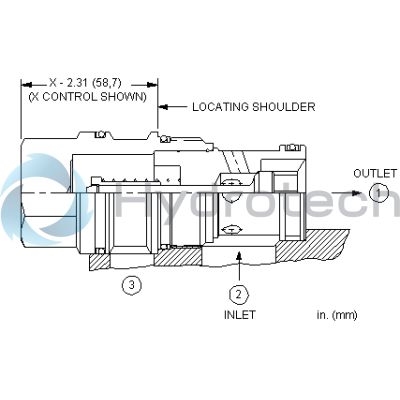

Free-flow, side-to-nose cheater check valves function as a standard 2-port check valve in a 3-port cavity with port 3 of the cartridge blocked off. These valves are useful in circuits where a check valve is required in an existing three port cavity.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-19A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 1.90 lb0,85 kg |
| Seal kit - Cartridge | Viton: 990-019-006 |
