SUN HYDRAULICS
CXIDLFN
$171.40 USD
Tags:
- SUN HYDRAULICS
- Material:CXIDLFN
- Model:CXID-LFN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXIDLFN (CXIDLFN) is a high-performance check valve designed for hydraulic applications requiring reliable unidirectional flow control. This model features a free flow from the inlet port 2 to the outlet port 1, while effectively blocking flow in the reverse direction. The CXIDLFN is engineered with Sun Hydraulics' floating style construction, which minimizes internal parts binding that can occur due to excessive installation torque or variations in cavity/cartridge machining. The valve operates under a maximum pressure of 5000 psi (350 bar) at both ports and is capable of handling up to 120 gpm (480 L/min). It showcases an exceptionally low leakage rate, with maximum leakage less than 1 drop per minute (0.07 cc/min), ensuring efficient and leak-proof performance. The design includes a T18A cavity and belongs to the Series 4 line. Weighing at 2.10 lb (0.95 kg), the CXIDLFN valve requires an installation torque between 350 - 375 lbf\u00b7ft (474 - 508 Nm) and accommodates a valve hex size of 1-5/8 in. (41.3 mm). This model is also compatible with Viton seals for enhanced durability and chemical resistance, suitable for various hydraulic circuits, especially where manifold drillings may be incorrect or adjustments are needed to increase circuit efficiency without extensive modifications.
The Sun Hydraulics CXIDLFN (CXIDLFN) is a high-performance check valve designed for hydraulic applications requiring reliable unidirectional flow control. This model features a free flow from the inlet port 2 to the outlet port 1, while effectively blocking flow in the reverse direction. The CXIDLFN is engineered with Sun Hydraulics' floating style construction, which minimizes internal parts binding that can occur due to excessive installation torque or variations in cavity/cartridge machining. The valve operates under a maximum pressure of 5000 psi (350 bar) at both ports and is capable of handling up to 120 gpm (480 L/min). It showcases an exceptionally low leakage rate, with maximum leakage less than 1 drop per minute (0.07 cc/min), ensuring efficient and leak-proof performance. The design includes a T18A cavity and belongs to the Series 4 line. Weighing at 2.10 lb (0.95 kg), the CXIDLFN valve requires an installation torque between 350 - 375 lbf\u00b7ft (474 - 508 Nm) and accommodates a valve hex size of 1-5/8 in. (41.3 mm). This model is also compatible with Viton seals for enhanced durability and chemical resistance, suitable for various hydraulic circuits, especially where manifold drillings may be incorrect or adjustments are needed to increase circuit efficiency without extensive modifications.

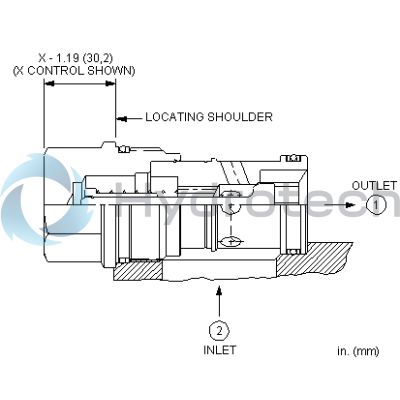

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-18A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 2.10 lb0,95 kg |
| Seal kit - Cartridge | Viton: 990-018-006 |
