SUN HYDRAULICS
CXHFXHV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

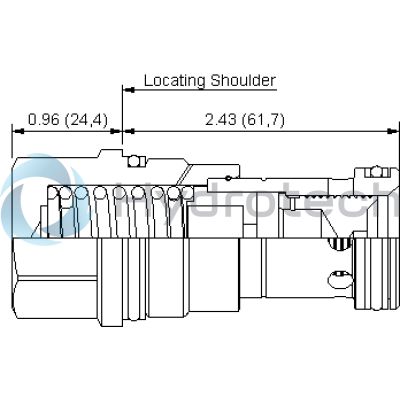

The Sun Hydraulics CXHFXHV (CXHFXHV) is a high-performance hydraulic valve designed for use in parts-in-body, hot oil shuttle assemblies. This specific model features a unique configuration where two valves are positioned nose to nose with a pin in between, forming an effective low side shuttle system. Engineered for high capacity fluid management, the CXHFXHV can handle up to 40 gallons per minute (approximately 160 liters per minute). It fits into a T16A cavity and belongs to the Series 3 line of Sun Hydraulics' products. The valve is characterized by its robust construction with a hex size of 1 1/4 inches (31.8 mm) and requires an installation torque between 150 and 160 lbf ft (203 to 217 Nm). It includes Viton seals, as indicated by the seal kit/cartridge number Viton: 990016006, ensuring reliable performance under various operating conditions. The design and materials used in the CXHFXHV make it suitable for direct acting applications, which are crucial for preventing overpressure in hydraulic systems. Its capabilities allow it to operate efficiently even in environments with high dirt tolerance while maintaining stability and robustness. This model is particularly useful for systems requiring precise pressure regulation and high flow rates, making it an essential component in complex hydraulic circuits where performance and reliability are critical. The CXHFXHV\u2019s engineering ensures that it can meet rigorous operational demands consistently, providing a dependable solution for specialized hydraulic applications.
