SUN HYDRAULICS
CXHCXZN
$93.70 USD
Tags:
- SUN HYDRAULICS
- Material:CXHCXZN
- Model:CXHC-XZN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXHCXZN (CXHCXZN) is a specialized hydraulic check valve designed for high-efficiency fluid control in hydraulic systems. This model operates as a standard 2-port check valve within a 3-port cavity, with the third port blocked off, making it ideal for applications requiring a check valve in existing three-port cavities. The CXHCXZN features an innovative free-flow, nose-to-side cheater configuration that enhances its versatility in various hydraulic circuit setups. With a maximum operating pressure of 5000 psi (350 bar) and a flow capacity of up to 80 gpm (320 L/min), the CXHCXZN is well-suited for high-pressure environments. It boasts an extremely low maximum leakage rate at just one drop per minute (0.07 cc/min), ensuring minimal fluid loss and efficient operation. The valve is constructed using Sun's floating style design, which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. The valve's dimensions include a hex size of 1 1/4 inches (31.8 mm), and it requires an installation torque between 150 -160 lbf ft (203 -217 Nm). It also supports Viton seals, indicated by the seal kit/cartridge part number 990017006, providing excellent resistance to high temperatures and chemicals. This model is directly applicable to systems needing precise fluid control without the risk of leakage or internal binding, making it an essential component in maintaining the integrity and efficiency of hydraulic circuits.
The Sun Hydraulics CXHCXZN (CXHCXZN) is a specialized hydraulic check valve designed for high-efficiency fluid control in hydraulic systems. This model operates as a standard 2-port check valve within a 3-port cavity, with the third port blocked off, making it ideal for applications requiring a check valve in existing three-port cavities. The CXHCXZN features an innovative free-flow, nose-to-side cheater configuration that enhances its versatility in various hydraulic circuit setups. With a maximum operating pressure of 5000 psi (350 bar) and a flow capacity of up to 80 gpm (320 L/min), the CXHCXZN is well-suited for high-pressure environments. It boasts an extremely low maximum leakage rate at just one drop per minute (0.07 cc/min), ensuring minimal fluid loss and efficient operation. The valve is constructed using Sun's floating style design, which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. The valve's dimensions include a hex size of 1 1/4 inches (31.8 mm), and it requires an installation torque between 150 -160 lbf ft (203 -217 Nm). It also supports Viton seals, indicated by the seal kit/cartridge part number 990017006, providing excellent resistance to high temperatures and chemicals. This model is directly applicable to systems needing precise fluid control without the risk of leakage or internal binding, making it an essential component in maintaining the integrity and efficiency of hydraulic circuits.

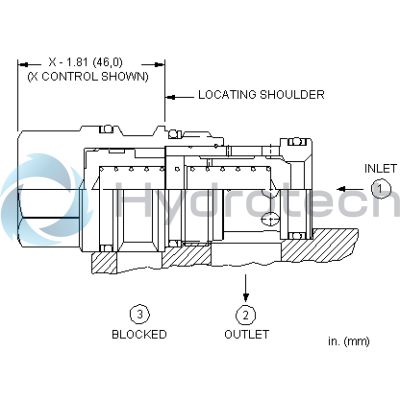

Free-flow, nose-to-side cheater check valves function as a standard 2-port check valve in a 3-port cavity with port 3 of the cartridge blocked off. These valves are useful in circuits where a check valve is required in an existing three port cavity.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 80 gpm320 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Seal kit - Cartridge | Viton: 990-017-006 |
