SUN HYDRAULICS
CHECK CARTRIDGE
CXHAXFN


$83.50
  • SUN HYDRAULICS
  • Material:CXHAXFN
  • Model:CXHA-XFN
  • Summary:Cartridge

Quantity in stock: 16

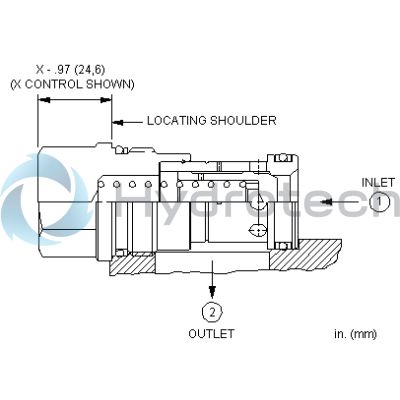

Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.

  • Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
  • Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
  • Will accept 5000 psi (350 bar) at ports 1 and 2.
  • Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
  • Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
  • Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity T-16A
Series 3
Capacity 80 gpm320 L/min.
Maximum Operating Pressure 5000 psi350 bar
Maximum Valve Leakage at 110 SUS (24 cSt) 1 drops/min.0,07 cc/min.
Valve Hex Size 1 1/4 in.31,8 mm
Valve Installation Torque 150 - 160 lbf ft203 - 217 Nm
Model Weight 1.60 lb0,70 kg
Seal kit - Cartridge Viton: 990-016-006
