SUN HYDRAULICS
CXGEXBV
$110.30 USD
Tags:
- SUN HYDRAULICS
- Material:CXGEXBV
- Model:CXGE-XBV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXGEXBV (CXGEXBV) is a versatile check valve designed for hydraulic applications requiring reliable, low-leakage one-way flow control. This model functions as a standard 2-port check valve within a 3-port cavity, with port 3 blocked off, making it ideal for circuits where a check valve needs to fit into an existing three-port setup. The CXGEXBV can accommodate high pressures up to 5000 psi (350 bar) at ports 1 and 2, ensuring robust performance in demanding environments. The valve is designed to minimize leakage, offering an extremely low maximum leakage rate of less than one drop per minute (0.07 cc/min), which is critical for maintaining system efficiency and performance. It features Sun\u2019s floating style construction which helps prevent internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining, enhancing its reliability and lifespan. With a maximum flow capacity of 60 gpm (240 L/min), the CXGEXBV is suited for various hydraulic applications where high flow rates are necessary. The valve's body and internals are corrosion-resistant, suitable for use in corrosive environments when specified with the appropriate model code suffix (AP or LH). Installation specifications include a hex size of 1-1/4 inches (31.8 mm) and an installation torque range of 150-160 lbf ft (203-217 Nm), with the overall weight of the model being relatively light at 1.60 lbs (0.70 kg). This product also uses Viton seals for enhanced durability against harsh fluids and temperatures, further ensuring its effectiveness in various operational conditions.
The Sun Hydraulics CXGEXBV (CXGEXBV) is a versatile check valve designed for hydraulic applications requiring reliable, low-leakage one-way flow control. This model functions as a standard 2-port check valve within a 3-port cavity, with port 3 blocked off, making it ideal for circuits where a check valve needs to fit into an existing three-port setup. The CXGEXBV can accommodate high pressures up to 5000 psi (350 bar) at ports 1 and 2, ensuring robust performance in demanding environments. The valve is designed to minimize leakage, offering an extremely low maximum leakage rate of less than one drop per minute (0.07 cc/min), which is critical for maintaining system efficiency and performance. It features Sun\u2019s floating style construction which helps prevent internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining, enhancing its reliability and lifespan. With a maximum flow capacity of 60 gpm (240 L/min), the CXGEXBV is suited for various hydraulic applications where high flow rates are necessary. The valve's body and internals are corrosion-resistant, suitable for use in corrosive environments when specified with the appropriate model code suffix (AP or LH). Installation specifications include a hex size of 1-1/4 inches (31.8 mm) and an installation torque range of 150-160 lbf ft (203-217 Nm), with the overall weight of the model being relatively light at 1.60 lbs (0.70 kg). This product also uses Viton seals for enhanced durability against harsh fluids and temperatures, further ensuring its effectiveness in various operational conditions.

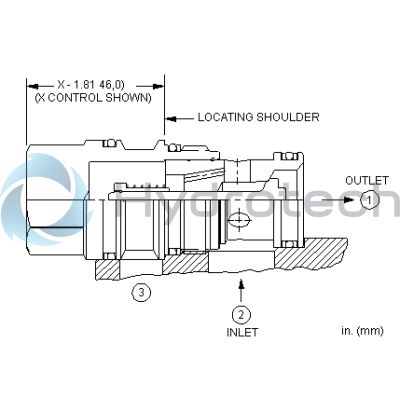

Free-flow, side-to-nose cheater check valves function as a standard 2-port check valve in a 3-port cavity with port 3 of the cartridge blocked off. These valves are useful in circuits where a check valve is required in an existing three port cavity.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-017-006 |
