SUN HYDRAULICS
CXGELZV
$120.30 USD
Tags:
- SUN HYDRAULICS
- Material:CXGELZV
- Model:CXGE-LZV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXGELZV (CXGELZV) is a specialized hydraulic check valve designed for high-performance applications requiring minimal leakage and high pressure tolerance. This valve is uniquely configured as a free-flow, side-to-nose cheater check valve, which operates as a standard 2-port check valve when the third port of its cartridge is blocked off. This design makes it particularly useful in circuits where a check valve integration is needed within an existing three-port cavity. The CXGELZV can handle pressures up to 5000 psi (350 bar) at ports 1 and 2, ensuring robust performance in demanding environments. It has an impressive maximum flow capacity of 60 gpm (240 L/min), suitable for various hydraulic applications. The valve exhibits extremely low leakage rates, with a maximum of less than one drop per minute (0.07 cc/min), which is critical for maintaining system efficiency and preventing fluid loss. Constructed to resist corrosion, the CXGELZV incorporates Sun Hydraulics' floating style construction. This feature minimizes the risk of internal parts binding, which could result from excessive installation torque or variations in cavity/cartridge machining\u2014ensuring reliable and consistent operation. The valve's hex size is 1-1/4 inches (31.8 mm), and it requires an installation torque between 150 - 160 lbf\u00b7ft (203 - 217 Nm). Weighing at approximately 1.60 lbs (0.70 kg), this model is both compact and manageable for installation. Overall, the Sun Hydraulics CXGELZV check valve provides a reliable solution for hydraulic systems requiring precise fluid control with minimal leakage and high-pressure handling capabilities in corrosive environments or existing three-port setups.
The Sun Hydraulics CXGELZV (CXGELZV) is a specialized hydraulic check valve designed for high-performance applications requiring minimal leakage and high pressure tolerance. This valve is uniquely configured as a free-flow, side-to-nose cheater check valve, which operates as a standard 2-port check valve when the third port of its cartridge is blocked off. This design makes it particularly useful in circuits where a check valve integration is needed within an existing three-port cavity. The CXGELZV can handle pressures up to 5000 psi (350 bar) at ports 1 and 2, ensuring robust performance in demanding environments. It has an impressive maximum flow capacity of 60 gpm (240 L/min), suitable for various hydraulic applications. The valve exhibits extremely low leakage rates, with a maximum of less than one drop per minute (0.07 cc/min), which is critical for maintaining system efficiency and preventing fluid loss. Constructed to resist corrosion, the CXGELZV incorporates Sun Hydraulics' floating style construction. This feature minimizes the risk of internal parts binding, which could result from excessive installation torque or variations in cavity/cartridge machining\u2014ensuring reliable and consistent operation. The valve's hex size is 1-1/4 inches (31.8 mm), and it requires an installation torque between 150 - 160 lbf\u00b7ft (203 - 217 Nm). Weighing at approximately 1.60 lbs (0.70 kg), this model is both compact and manageable for installation. Overall, the Sun Hydraulics CXGELZV check valve provides a reliable solution for hydraulic systems requiring precise fluid control with minimal leakage and high-pressure handling capabilities in corrosive environments or existing three-port setups.

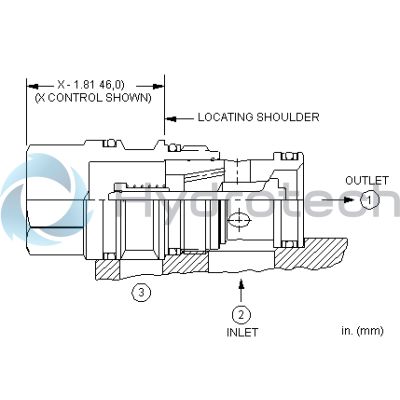

Free-flow, side-to-nose cheater check valves function as a standard 2-port check valve in a 3-port cavity with port 3 of the cartridge blocked off. These valves are useful in circuits where a check valve is required in an existing three port cavity.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-017-006 |
