SUN HYDRAULICS
CXGDXZV
$92.00 USD
Tags:
- SUN HYDRAULICS
- Material:CXGDXZV
- Model:CXGD-XZV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXGDXZV (CXGDXZV) is a high-performance check valve designed for hydraulic systems requiring reliable, unidirectional flow control. This model, part of the Series 3 lineup, features a T16A cavity and supports a maximum flow capacity of 60 gpm (240 L/min). It is engineered to operate at pressures up to 5000 psi (350 bar), making it suitable for high-pressure applications. The CXGDXZV valve is distinguished by its freeflow, side-to-nose configuration that allows free flow from port 2 to port 1 while blocking reverse flow, thus protecting hydraulic circuits by preventing backflow. This specific design has approximately 30% less capacity than the alternative nose-to-side models but offers significant advantages in systems with existing manifold inaccuracies. The valve exhibits exceptionally low leakage rates, with maximum leakage maintained at less than one drop per minute (0.07 cc/min). Constructed with Sun's proprietary floating style design, the CXGDXZV minimizes internal part binding and potential damage due to installation torque or cavity/cartridge machining discrepancies. The physical robustness of this model is complemented by its installation requirements; it demands an installation torque between 150 and 160 lbf-ft (203 - 217 Nm) and uses a hex size of 1-1/4 inches (31.8 mm). Weighing only 1.60 lbs (0.70 kg), the valve is relatively lightweight yet durable. For systems utilizing phosphate ester fluids, cartridges configured with EPDM seals are recommended; however, these should not be exposed to petroleum-based fluids as they can degrade the seals. For other fluid types, Viton-sealed cartridges are available under part number 990016006, ensuring compatibility and longevity across various hydraulic applications.
The Sun Hydraulics CXGDXZV (CXGDXZV) is a high-performance check valve designed for hydraulic systems requiring reliable, unidirectional flow control. This model, part of the Series 3 lineup, features a T16A cavity and supports a maximum flow capacity of 60 gpm (240 L/min). It is engineered to operate at pressures up to 5000 psi (350 bar), making it suitable for high-pressure applications. The CXGDXZV valve is distinguished by its freeflow, side-to-nose configuration that allows free flow from port 2 to port 1 while blocking reverse flow, thus protecting hydraulic circuits by preventing backflow. This specific design has approximately 30% less capacity than the alternative nose-to-side models but offers significant advantages in systems with existing manifold inaccuracies. The valve exhibits exceptionally low leakage rates, with maximum leakage maintained at less than one drop per minute (0.07 cc/min). Constructed with Sun's proprietary floating style design, the CXGDXZV minimizes internal part binding and potential damage due to installation torque or cavity/cartridge machining discrepancies. The physical robustness of this model is complemented by its installation requirements; it demands an installation torque between 150 and 160 lbf-ft (203 - 217 Nm) and uses a hex size of 1-1/4 inches (31.8 mm). Weighing only 1.60 lbs (0.70 kg), the valve is relatively lightweight yet durable. For systems utilizing phosphate ester fluids, cartridges configured with EPDM seals are recommended; however, these should not be exposed to petroleum-based fluids as they can degrade the seals. For other fluid types, Viton-sealed cartridges are available under part number 990016006, ensuring compatibility and longevity across various hydraulic applications.

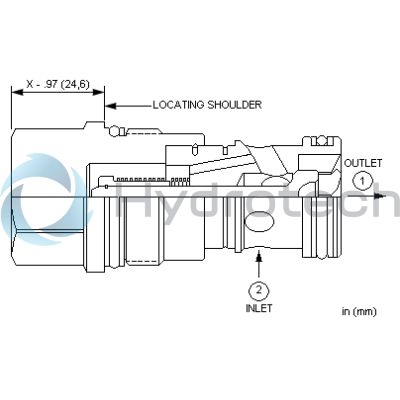

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-16A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-016-006 |
