SUN HYDRAULICS
CXGDLZV
$100.00 USD
Tags:
- SUN HYDRAULICS
- Material:CXGDLZV
- Model:CXGD-LZV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXGDLZV (CXGDLZV) is a high-performance check valve designed for hydraulic applications requiring reliable, one-way flow control. This model, part of the T16A cavity series 3, is specifically engineered to facilitate free flow from inlet port 2 to outlet port 1 while blocking reverse flow, making it an essential component in a variety of hydraulic circuits. The CXGDLZV is distinguished by its side-to-nose check configuration which offers about 30% less capacity compared to nose-to-side models but serves as an effective solution for correcting manifold drilling inaccuracies in existing systems. With a robust design that supports up to 5000 psi (350 bar) at both ports and a maximum flow capacity of 60 gpm (240 L/min), this valve is suitable for high-pressure applications. It features extremely low leakage rates, with a maximum of less than one drop per minute (0.07 cc/min), ensuring efficient operation and minimal fluid loss. The valve's construction includes Sun's floating style mechanism which minimizes internal part binding due to installation torque or machining variations. The CXGDLZV weighs approximately 1.60 lbs (0.70 kg) and requires an installation torque between 150 - 160 lbf\u00b7ft (203 - 217 Nm). It utilizes Viton seals for the cartridge, specifically designed for compatibility with phosphate ester fluids; however, these seals must not be exposed to petroleum-based fluids as they can cause damage. This model\u2019s adaptability and precision make it a valuable asset for maintaining the integrity and efficiency of hydraulic systems.
The Sun Hydraulics CXGDLZV (CXGDLZV) is a high-performance check valve designed for hydraulic applications requiring reliable, one-way flow control. This model, part of the T16A cavity series 3, is specifically engineered to facilitate free flow from inlet port 2 to outlet port 1 while blocking reverse flow, making it an essential component in a variety of hydraulic circuits. The CXGDLZV is distinguished by its side-to-nose check configuration which offers about 30% less capacity compared to nose-to-side models but serves as an effective solution for correcting manifold drilling inaccuracies in existing systems. With a robust design that supports up to 5000 psi (350 bar) at both ports and a maximum flow capacity of 60 gpm (240 L/min), this valve is suitable for high-pressure applications. It features extremely low leakage rates, with a maximum of less than one drop per minute (0.07 cc/min), ensuring efficient operation and minimal fluid loss. The valve's construction includes Sun's floating style mechanism which minimizes internal part binding due to installation torque or machining variations. The CXGDLZV weighs approximately 1.60 lbs (0.70 kg) and requires an installation torque between 150 - 160 lbf\u00b7ft (203 - 217 Nm). It utilizes Viton seals for the cartridge, specifically designed for compatibility with phosphate ester fluids; however, these seals must not be exposed to petroleum-based fluids as they can cause damage. This model\u2019s adaptability and precision make it a valuable asset for maintaining the integrity and efficiency of hydraulic systems.

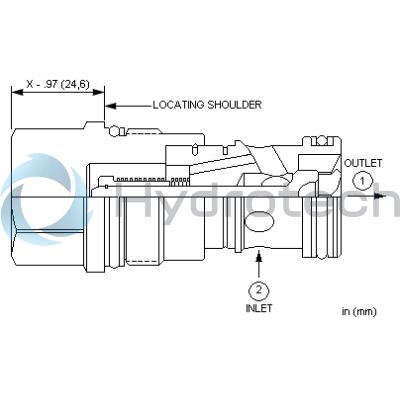

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-16A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-016-006 |
