SUN HYDRAULICS
CXGBXEN
$158.20 USD
Tags:
- SUN HYDRAULICS
- Material:CXGBXEN
- Model:CXGB-XEN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXGBXEN (CXGBXEN) is a robust check valve designed for hydraulic systems requiring reliable, unidirectional flow control. This model features a Delrin seat, making it suitable for applications involving medium pressure and moderately dirty conditions, although it is not recommended for high flow or temperature environments. The CXGBXEN facilitates free flow from its inlet port 2 to the outlet port 1 while blocking the reverse flow, ensuring operational integrity in hydraulic circuits. This two-port check valve is compatible with T16A cavity specifications and belongs to the Series 3 lineup from Sun Hydraulics. It offers a maximum operating pressure of 3000 psi (210 bar) and can handle up to 60 gpm (240 L/min) of fluid capacity. One of its key attributes includes an extremely low leakage rate, with a maximum of less than one drop per minute (0.07 cc/min), which underscores its efficiency in preventing fluid loss. Installation specifics include a valve hex size of 1-1/4 inches (31.8 mm) and an installation torque range between 150-160 lbf-ft (203-217 Nm). The model weighs approximately 1.60 lbs (0.70 kg), making it reasonably lightweight yet sturdy enough for demanding applications. The CXGBXEN also utilizes Sun's floating style construction which minimizes internal part binding due to variations in cavity or cartridge machining, or excessive installation torque, enhancing its reliability and lifespan in various hydraulic setups.
The Sun Hydraulics CXGBXEN (CXGBXEN) is a robust check valve designed for hydraulic systems requiring reliable, unidirectional flow control. This model features a Delrin seat, making it suitable for applications involving medium pressure and moderately dirty conditions, although it is not recommended for high flow or temperature environments. The CXGBXEN facilitates free flow from its inlet port 2 to the outlet port 1 while blocking the reverse flow, ensuring operational integrity in hydraulic circuits. This two-port check valve is compatible with T16A cavity specifications and belongs to the Series 3 lineup from Sun Hydraulics. It offers a maximum operating pressure of 3000 psi (210 bar) and can handle up to 60 gpm (240 L/min) of fluid capacity. One of its key attributes includes an extremely low leakage rate, with a maximum of less than one drop per minute (0.07 cc/min), which underscores its efficiency in preventing fluid loss. Installation specifics include a valve hex size of 1-1/4 inches (31.8 mm) and an installation torque range between 150-160 lbf-ft (203-217 Nm). The model weighs approximately 1.60 lbs (0.70 kg), making it reasonably lightweight yet sturdy enough for demanding applications. The CXGBXEN also utilizes Sun's floating style construction which minimizes internal part binding due to variations in cavity or cartridge machining, or excessive installation torque, enhancing its reliability and lifespan in various hydraulic setups.

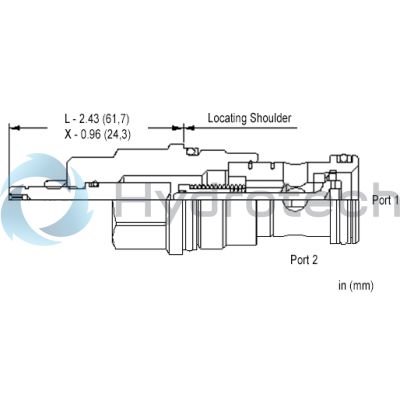

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- The Delrin seat is suitable for dirty, medium pressure systems that are not subjected to high flows or temperatures.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-16A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 3000 psi210 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-016-006 |
