SUN HYDRAULICS
CXCBLBV
$68.20 USD
Tags:
- SUN HYDRAULICS
- Material:CXCBLBV
- Model:CXCB-LBV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXCBLBV (CXCBLBV) is a high-performance check valve designed for hydraulic systems requiring reliable, one-way flow control. This model features a free-flow design from the inlet port 2 to the outlet port 1 and effectively blocks flow in the reverse direction, ensuring efficient operation in various hydraulic applications. The valve is built with a Delrin seat, making it appropriate for use in systems that encounter medium pressure and are exposed to dirty conditions but not high flow rates or temperatures. The CXCBLBV check valve is engineered within the T13A cavity specification and adheres to Series 1 standards, supporting a maximum capacity of 15 gallons per minute (approximately 60 liters per minute). It can withstand a maximum operating pressure of 3000 psi (210 bar), which makes it robust for various industrial uses. Additionally, this model is noted for its extremely low leakage rate, less than one drop per minute (0.07 cc/min), highlighting its efficiency and reliability in maintaining system integrity. This model also benefits from Sun Hydraulics' floating style construction which minimizes risks of internal parts binding that could result from over-torquing during installation or due to variations in cavity/cartridge machining. The valve requires an installation torque of between 30 - 35 lbf ft (41 - 47 Nm) and has a hex size of 7/8 inches (22.2 mm). Weighing just 0.20 lb (0.10 kg), it is lightweight yet durable, designed for easy integration into existing hydraulic circuits where manifold drilling might be incorrect or needs circuit saving adaptations. Overall, the Sun Hydraulics CXCBLBV check valve stands out for its precision engineering, suitability for challenging environments, and its capability to efficiently manage fluid control with minimal leakage.
The Sun Hydraulics CXCBLBV (CXCBLBV) is a high-performance check valve designed for hydraulic systems requiring reliable, one-way flow control. This model features a free-flow design from the inlet port 2 to the outlet port 1 and effectively blocks flow in the reverse direction, ensuring efficient operation in various hydraulic applications. The valve is built with a Delrin seat, making it appropriate for use in systems that encounter medium pressure and are exposed to dirty conditions but not high flow rates or temperatures. The CXCBLBV check valve is engineered within the T13A cavity specification and adheres to Series 1 standards, supporting a maximum capacity of 15 gallons per minute (approximately 60 liters per minute). It can withstand a maximum operating pressure of 3000 psi (210 bar), which makes it robust for various industrial uses. Additionally, this model is noted for its extremely low leakage rate, less than one drop per minute (0.07 cc/min), highlighting its efficiency and reliability in maintaining system integrity. This model also benefits from Sun Hydraulics' floating style construction which minimizes risks of internal parts binding that could result from over-torquing during installation or due to variations in cavity/cartridge machining. The valve requires an installation torque of between 30 - 35 lbf ft (41 - 47 Nm) and has a hex size of 7/8 inches (22.2 mm). Weighing just 0.20 lb (0.10 kg), it is lightweight yet durable, designed for easy integration into existing hydraulic circuits where manifold drilling might be incorrect or needs circuit saving adaptations. Overall, the Sun Hydraulics CXCBLBV check valve stands out for its precision engineering, suitability for challenging environments, and its capability to efficiently manage fluid control with minimal leakage.
Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- The Delrin seat is suitable for dirty, medium pressure systems that are not subjected to high flows or temperatures.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

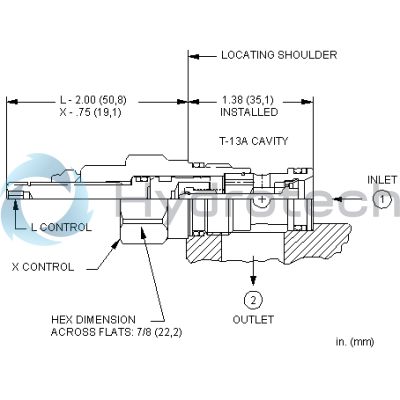

| Cavity | T-13A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 3000 psi210 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
